A new P2 board design with lots of extras
(hence the ++)
-
Photos &
Features the Parallax Propeller II microcontroller
- Photos:
-
(click on image to enlarge)
- Features:
- The Parallax Propeller II MCU (P2) with 8 cores and 512 kB of internal RAM and 64 Smart I/O Pins
- Integrated FTDI USB serial interface for
programming and debugging via Micro USB connector (also supplies up
to 500 mA of power)
- VGA output directly from P2 pins
- Dual USB interface for keyboards, mice,
game controllers, etc.
- Stereo audio output with integrated
headphone amplifier
- uSD connector
- 16 MB onboard Flash chip for boot program
storage (1 MB) and also data storage (15 MB)
- Electret microphone
- Qwiic connector (compatible with large
array of SparkFun and Adafruit items)
- I/O pins P0..P7 brought out to a Eval
style connector for use with several Parallax Eval Board Accessories
- A barrel connector for 6..9 VDC input to
5 V regulator for extra power
- A Propeller Platform style header for I/O
pins P24..P51 and also GND, 3.3 VDC, 5.0 VDC, and VIN
- Pads to optionally add up to 64 MB of

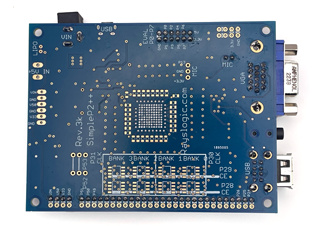

PSRAM on bottom of board.
- Four blue LEDs, two normally used for USB
status, and two shared with Qwiic connector I2C pins
- Download the
SimpleP2++ Hardware Manual for design and usage details
- If you are new to P2 and/or Spin2, check out the
Getting Started Guide
- Try out the
example code for the SimpleP2++ board
- Notes on
Overclocking (running over 300 MHz)
- Some SimpleP2++ boards can overclock more
than others, for this reason they are binned into two speed classes.
- Speed Class1: Can
all run at 320 MHz (tested with the emulator program MegaYume)
- Speed Class2: Can
all run at 340 MHz (tested with the emulator program NeoYume)
- The ability to run overclocked depends on
several factors including power supply, room temperature, and cooling.
- Forced air cooling (fan) may be required to
run for more than a few minutes
