Propeller 2

4.3" TFT Display board Accessory for P2 Evaluation Board

This 4.3" display board connects directly two the P2 Eval board and is compatible with NewhavenDisplay.com series of 480x272 resolution displays with 40-pin connector and no touch screen.
- (Shown with free display running demo (Eval board not included of course!))
- (Shown with 3D printed support)
Can ship with either a free display from NewhavenDisplay.com mounted (part # NHD-4.3-480272MF-ATXI#-1) or with no display if you want to use it with a much better IPS display (part # NHD-4.3-480272EF-ASXP, available at Digikey and Mouser, just mount with double sided tape).
- The free display is OK, but is not as bright and has a limited viewing angle, compared to the newer IPS displays
High speed screen updates enabled by 8-bit data bus
The two extra pins are used for an I2C bus connected to a Nunchuck interface and also a Adafruit QWIIC connector.
These type of displays to not have memory, so HUB RAM is used for the display buffer in our drivers.
Recommended donation for this board is $22 plus shipping, limit 2 per person.
Email ray@rayslogic.com with desired quantity to check stock and get a total recommended donation.
- Then, follow the directions here for donating

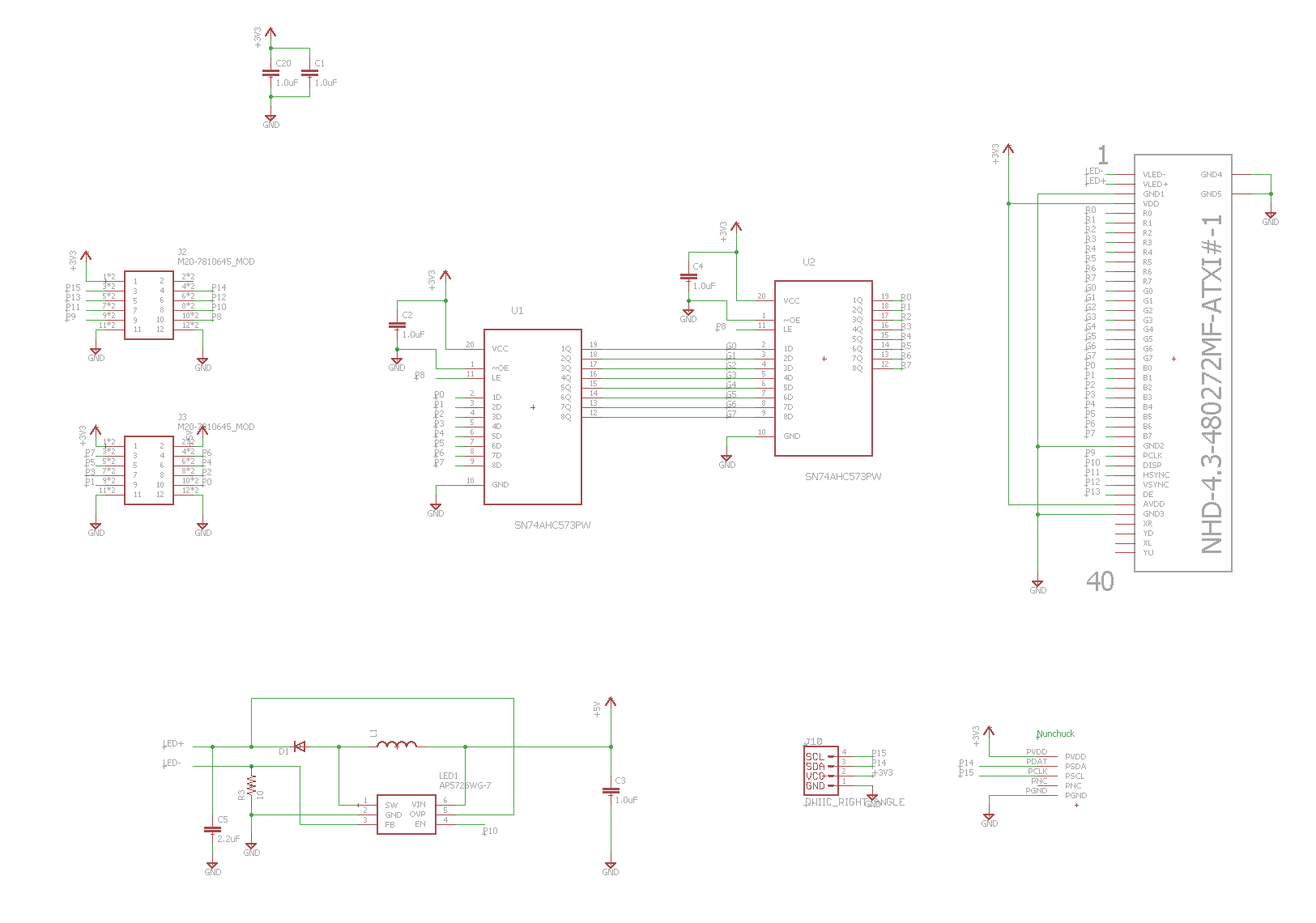

Open Source! Eagle source files and schematic:
Example Code - Just connect to P2 Eval board (or equivalent) and just make sure the "basepin" setting in code matches your setup.
- Graphics Demo with 24 bpp buffer (Download Here)
  - Demonstrates how to use the driver to draw points, lines, and other graphics primitives. Also does various size fonts.
