The DVI Graphics Shield gives you true color (24-bit) output to DVI monitor at up to 864x480 resolution (VGA or WVGA) and can also output to analog VGA or 4.3" or 5" touchscreens using available plugin adapters.

bullet

Can be connected as a shield for Propeller Prop Platform or used in any generic microcontroller setup with 12 I/O pins (generic 8080 interface) at 3.3 V.

bullet

   Shown mounted on Propeller Platform USB.

bullet

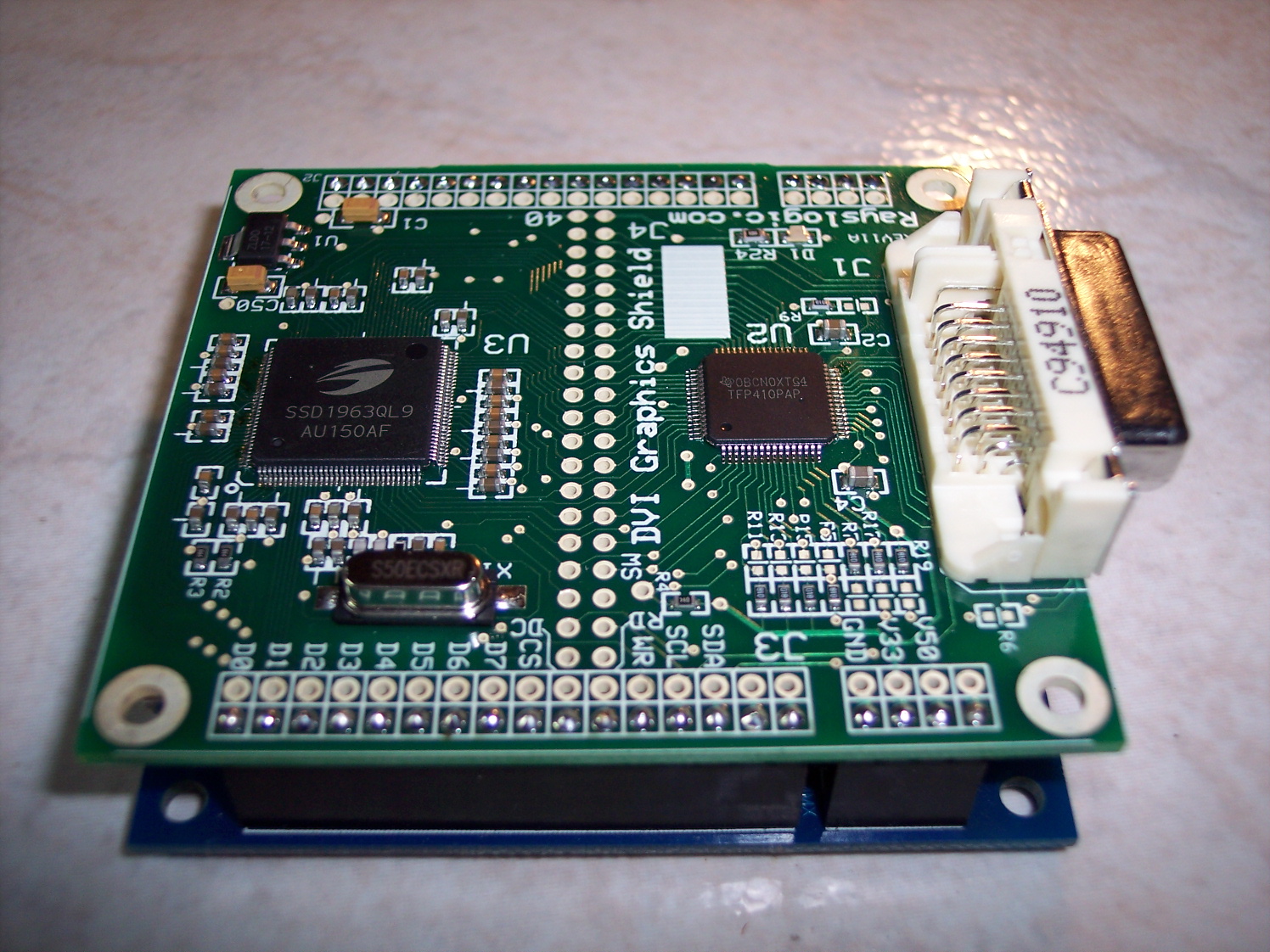

Uses the Solomon SSD1963 graphics controller (large chip on left) with 1215 kB of RAM to generate digital VGA signal and Ti TFP410 DVI transmitter (smaller chip on right) to convert to DVI.

bullet

A very low cost DVI to HDMI cable allows you to display on newer TVs.

bullet

Only 12 I/O pins are required for 8080 8-bit bus interface to SSD1963 (D0..D7, CS, DC, WR and RD).

bullet

Requires 3.3 VDC and 5 VDC power (although 5 VDC may not be required in all cases).

bullet

Optional I2C interface (SDA and SCL) allows optional access to DVI transmitter or expansion.

bullet

The central 40-pin connector allows for VGA and 4.3" TFT panel plug-in boards:

bullet

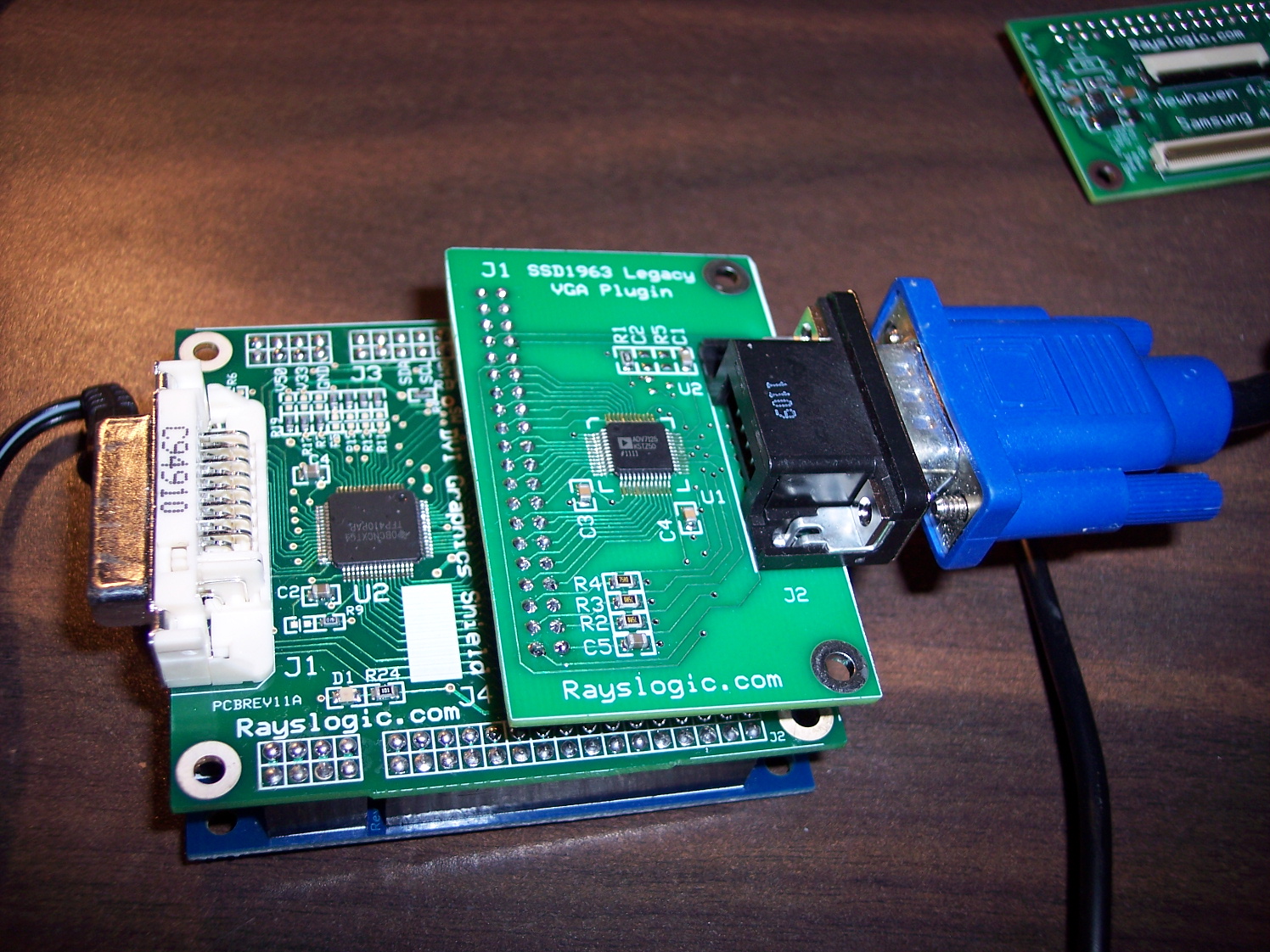

VGA Plug-In:  Provides analog VGA signal and DB15 connector (Now Available!)

bullet

bullet

Just modify this line in the driver file when using VGA Plugin:

bullet

bUsingVgaPlugin=true 'false

bullet

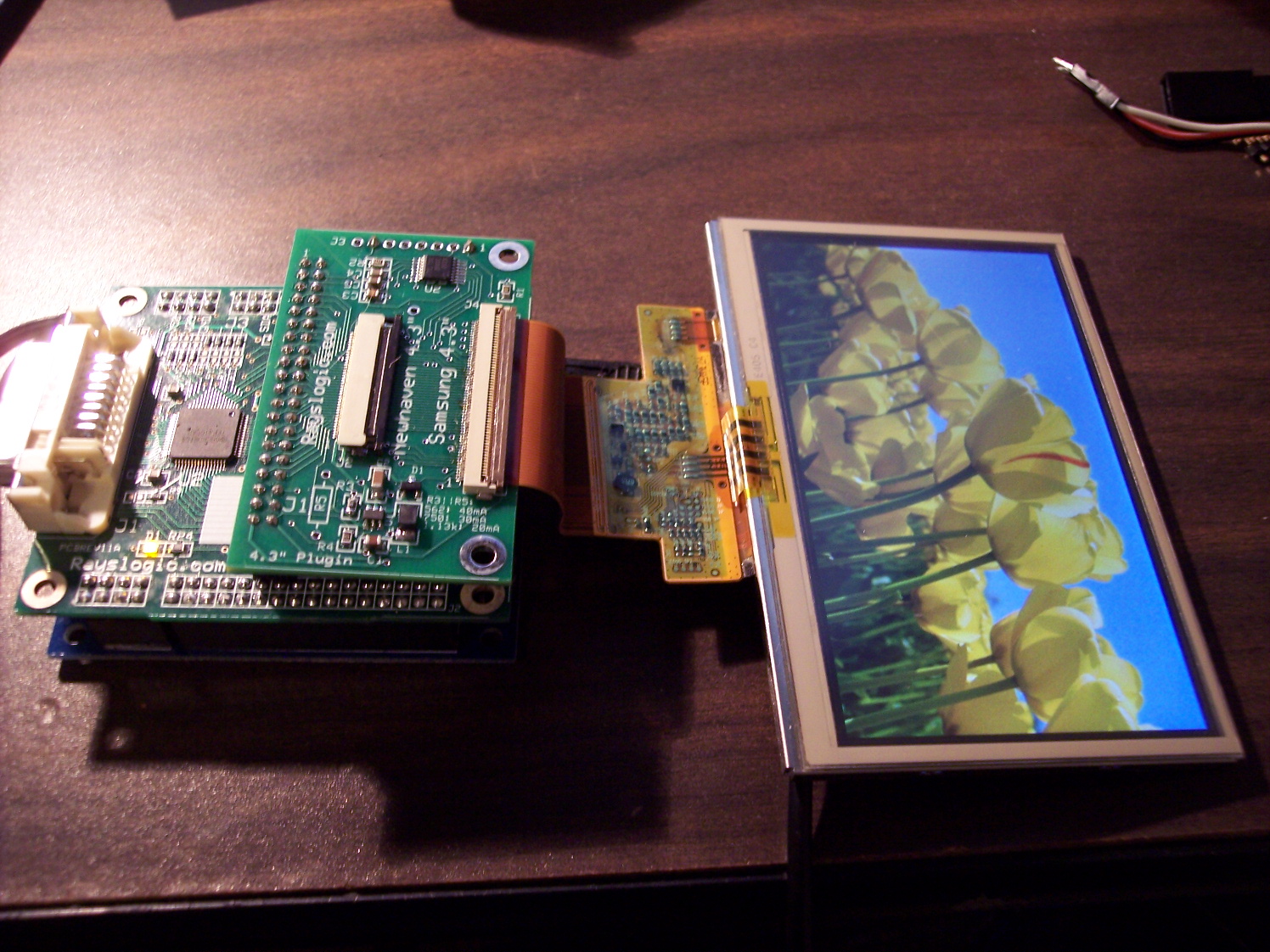

Touchscreen Plug-In:  Provides 4.3" LCD panel interface for Samsung and Newhaven 480x272 pixel 4.3" touchscreens and also provides touchpanel input over I2C (Now Available!).

bullet

bullet

Note:  Both connectors are "bottom contacts" type, so insert contact side down.

bullet

There's a special version of the driver that runs both Samsung and Newhaven 4.3" touchscreens.

bullet

Update:  Can also drive the Newhaven 5" LCDs with a resolution of 800x480!

bullet

Capacitive Touch:

bullet

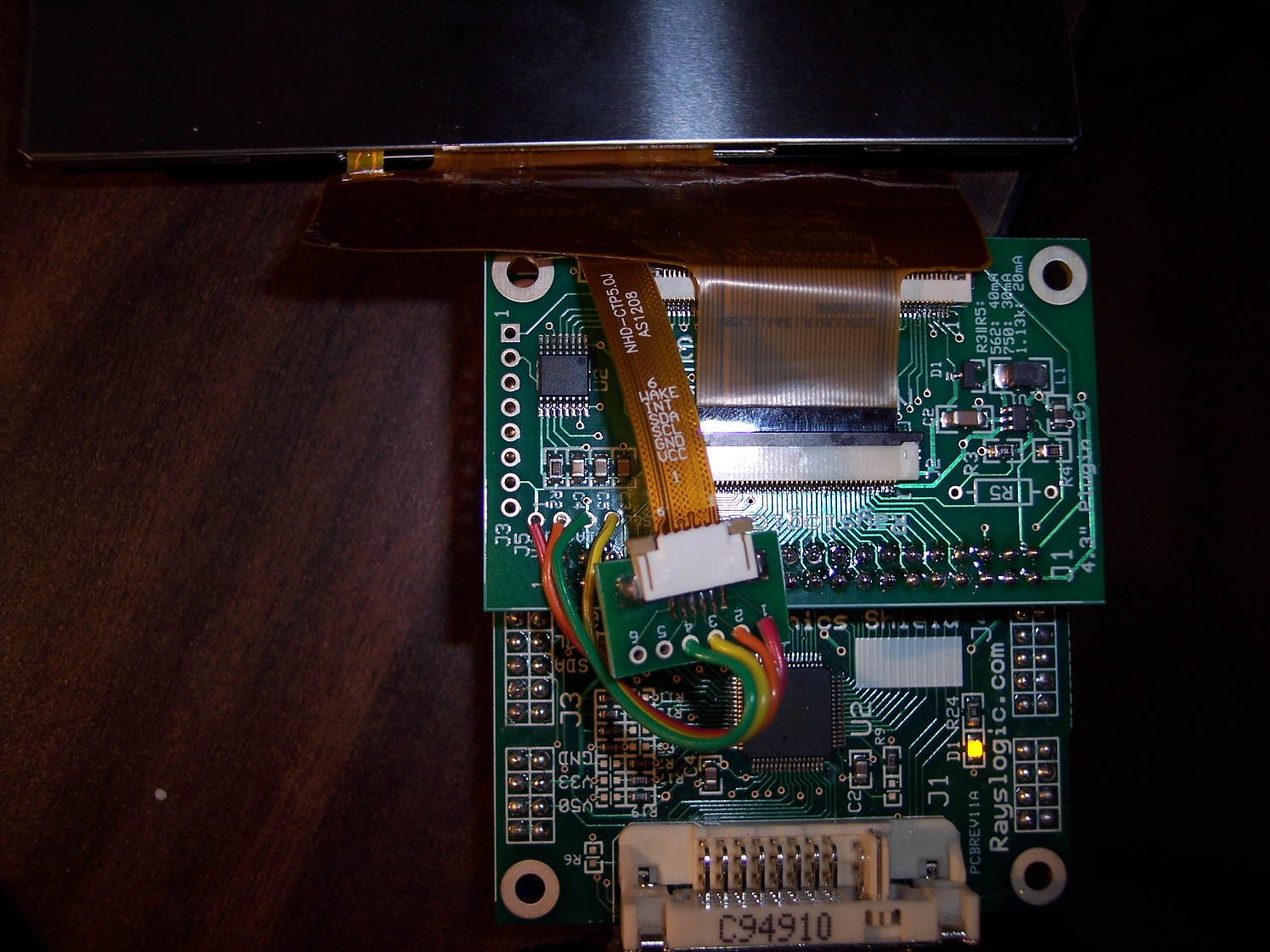

Newhaven 4.3" and 5" capacitive touch LCDs can now be used by adding in a small adapter and running four jumper wires as shown here:

bullet



bullet

Introductory Price is $34.99 for DVI Graphics Shield

bullet

Includes free shipping to US customers (a bit more for other countries)

bullet

To order, just send email to ray@rayslogic.com

bullet

VGA Plug-In now available for $16.99

bullet

Touchscreen Plug-In now available for $19.99

bullet

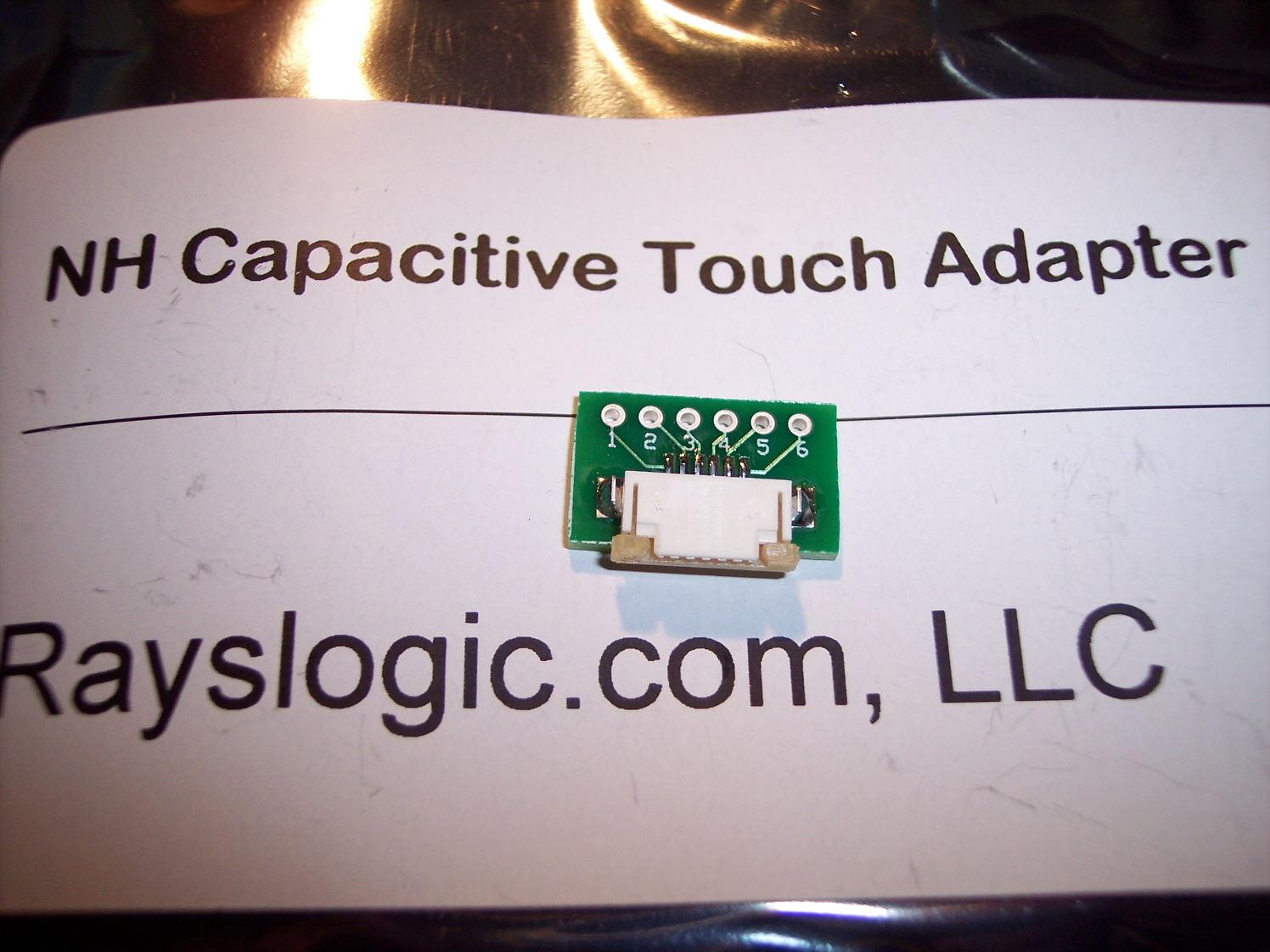

Capacitive touch adapter for 4.3" or 5" touchscreens now available for $3

bullet

YouTube Demo of graphics capabilities:

bullet

bullet

Example Propeller Code:

bullet

Here is the latest demo for 640x480 VGA or DVI output mode

bullet

To see the bitmaps, you'll need to copy these bitmap files onto connected SD card

bullet

Note:  Because of a bug in the Prop Tool, do not run when it has the included file "VGA_HiRes_wHeader.dat" opened.

bullet

Here is a new demo that shows variable pitch font support

bullet

It also compares this 1-bit font to a contemplated 24-bit font if you put this file with the 24-bit font on the SD card.

bullet

Download here the code for the demo shown in the video (with older version of the driver)

bullet

Here is an example that shows PowerPoint slides that were saved as 640x480 bitmaps (mounted on PropBOE).

bullet

Here is a demo example for 4.3" touchscreens.

bullet

Here are example bitmap files

bullet

Here is a demo example for Newhaven 5.0" resistive touchscreens.

bullet

Here is a simple example for the Newhaven 5.0" capacitive touch touchscreen.

bullet

Here is an example of how you can show custom fonts captured using RaysFontEditor

bullet

Schematics:

bullet

Download pdf schematics

bullet

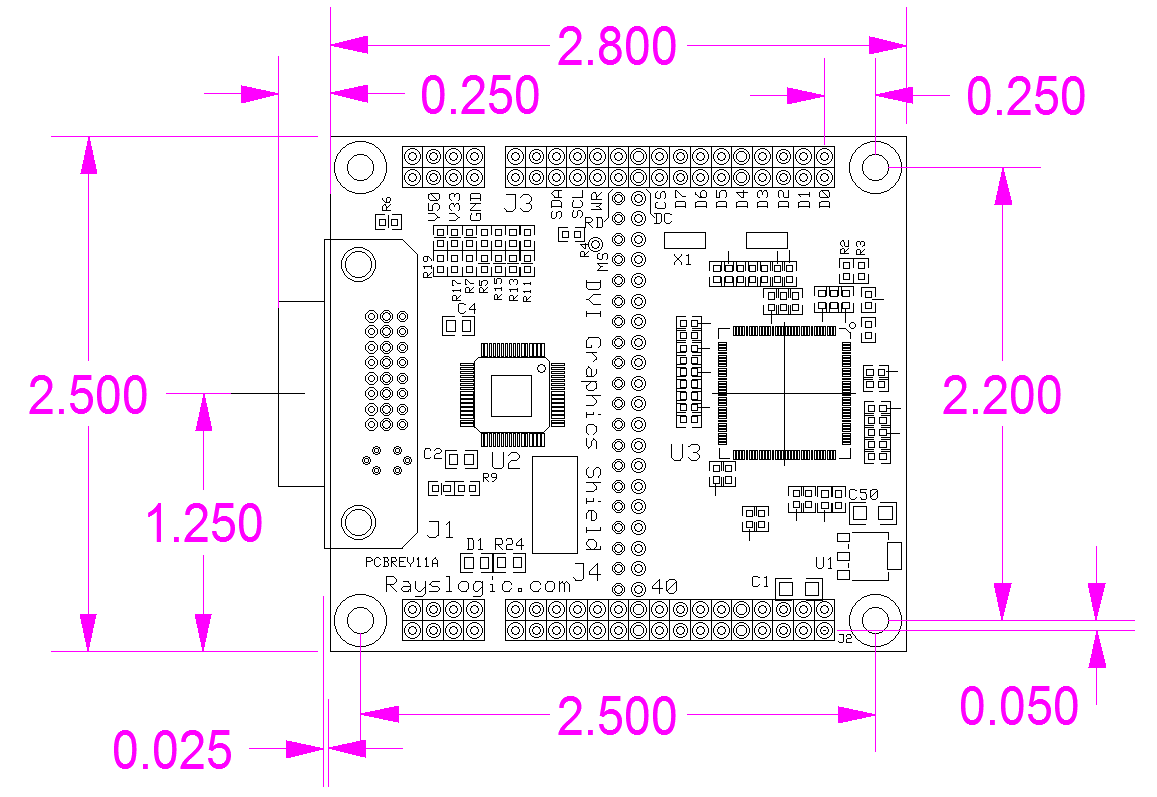

Board Dimensions:

bullet
