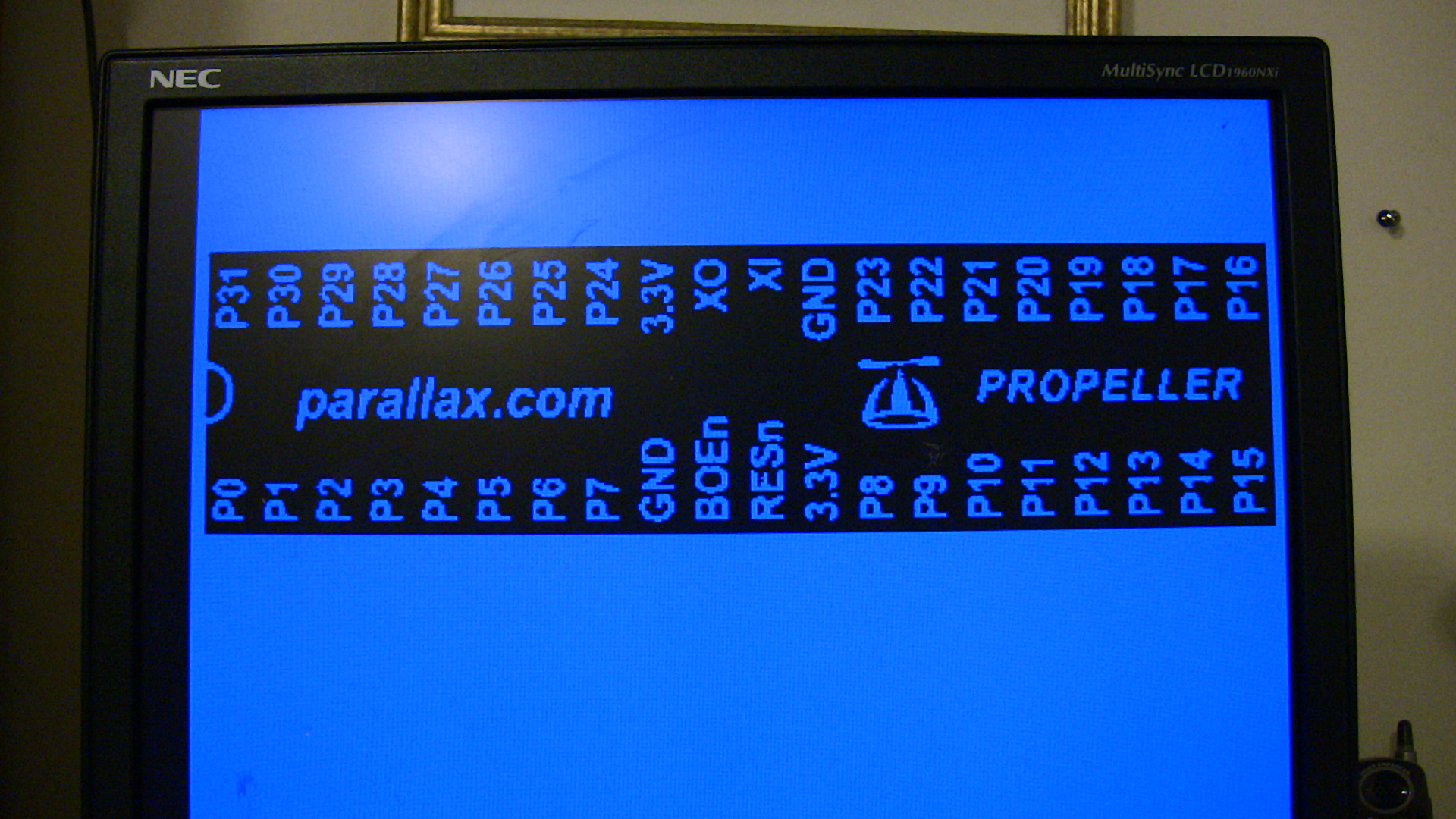

Here's a tool to create 1-bit bitmaps (2 colors) for the Propeller.  Here's a screenshot of a demo using the VGA driver to show a nearly full screen image:

bullet



bullet

This type of bitmap uses the least amount of space (compared to my 2-bit and 6-bit bitmaps).  So, it's good for simple images or when space is tight.

bullet

Download the SPIN code and image that generated the screenshot above here.

bullet

This updated version of the Prop1BitBitmap tool fixes the text output and now matches the binary (.dat) file.
