VGA Graphics Shield (VGS)

bullet

Connect the VGA Graphics Shield (VGS) to a Propeller Platform board (such as the PPE) to enable 24-bit color graphics with VGA resolution:

bullet

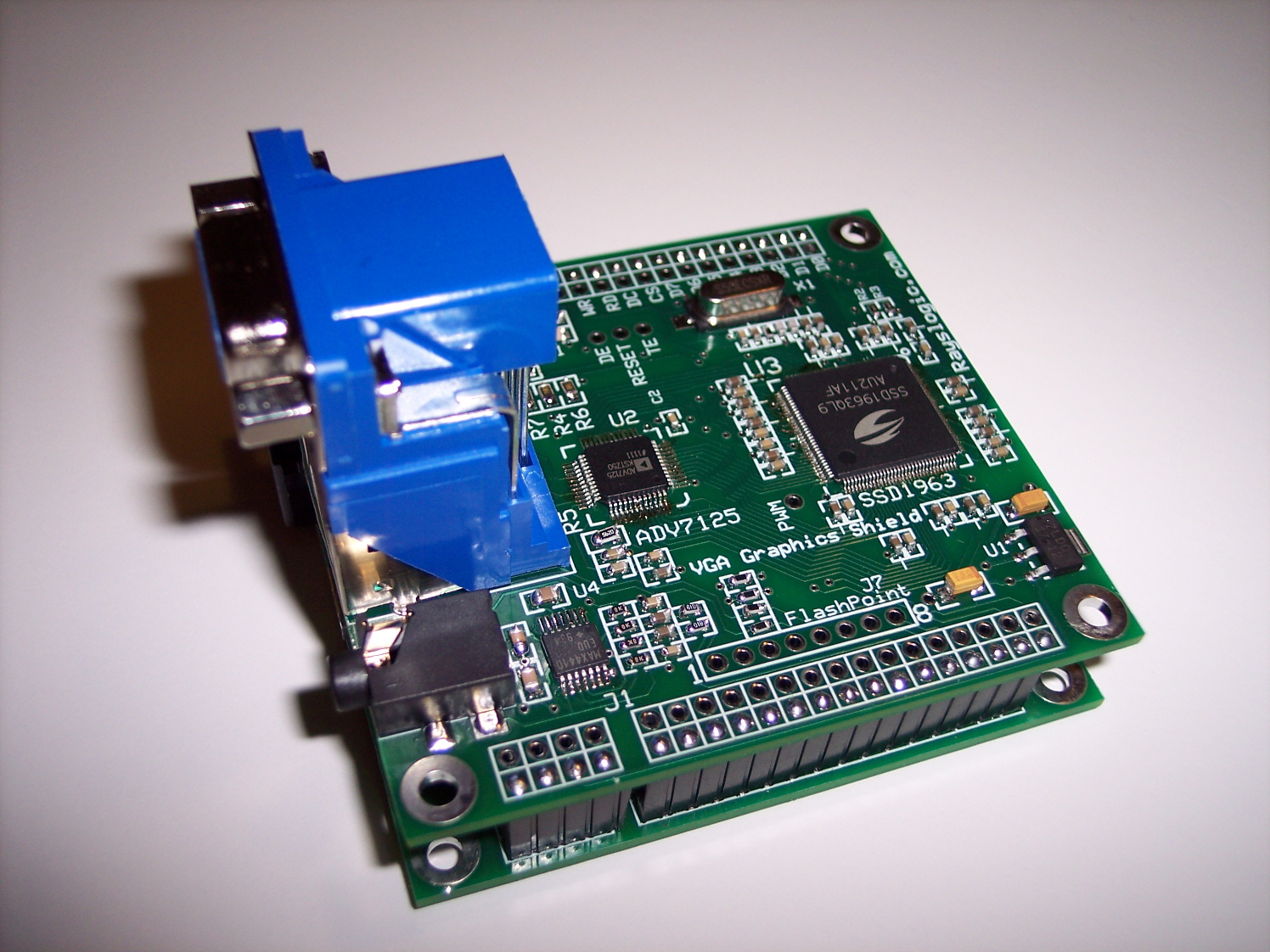

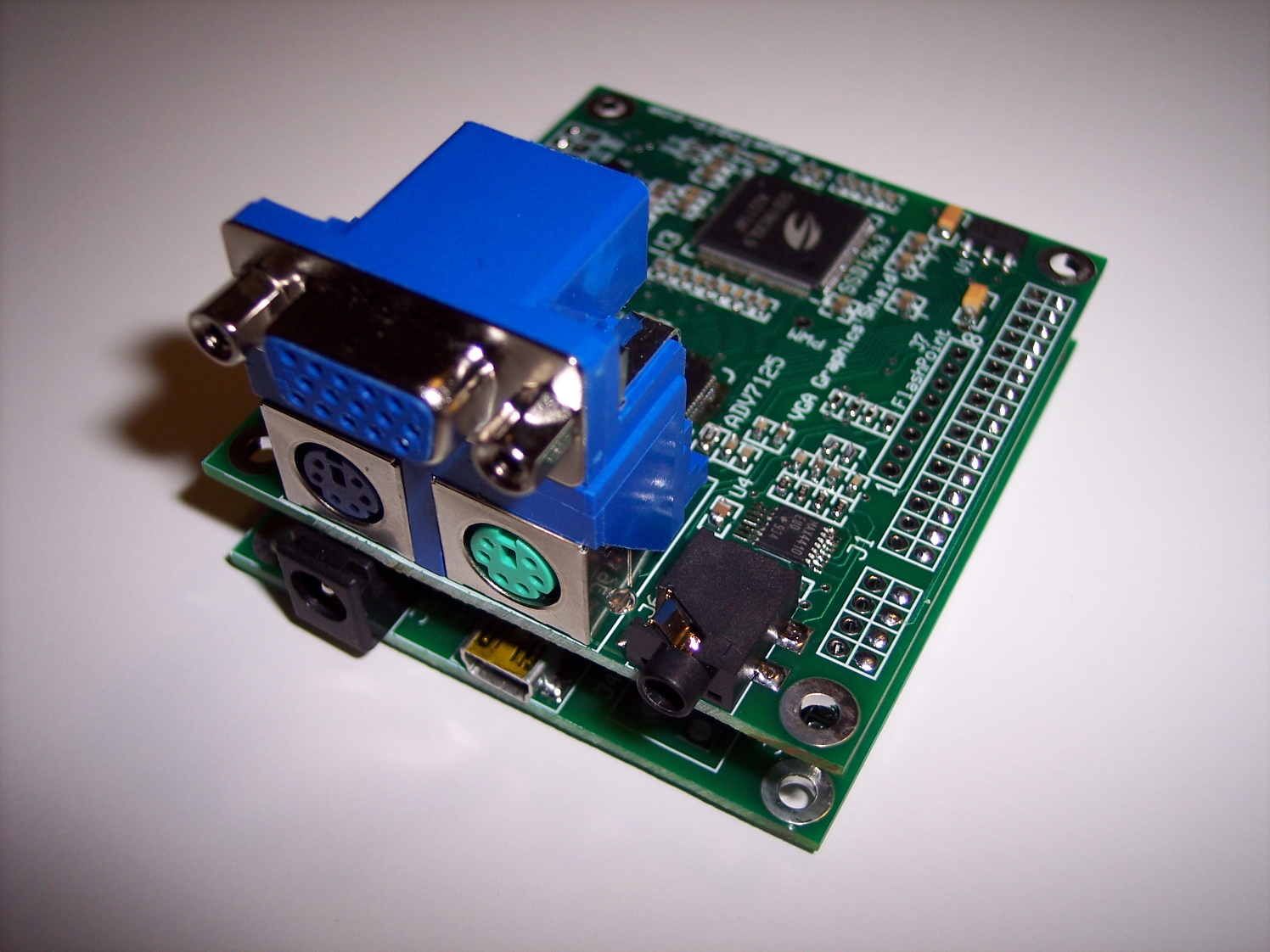

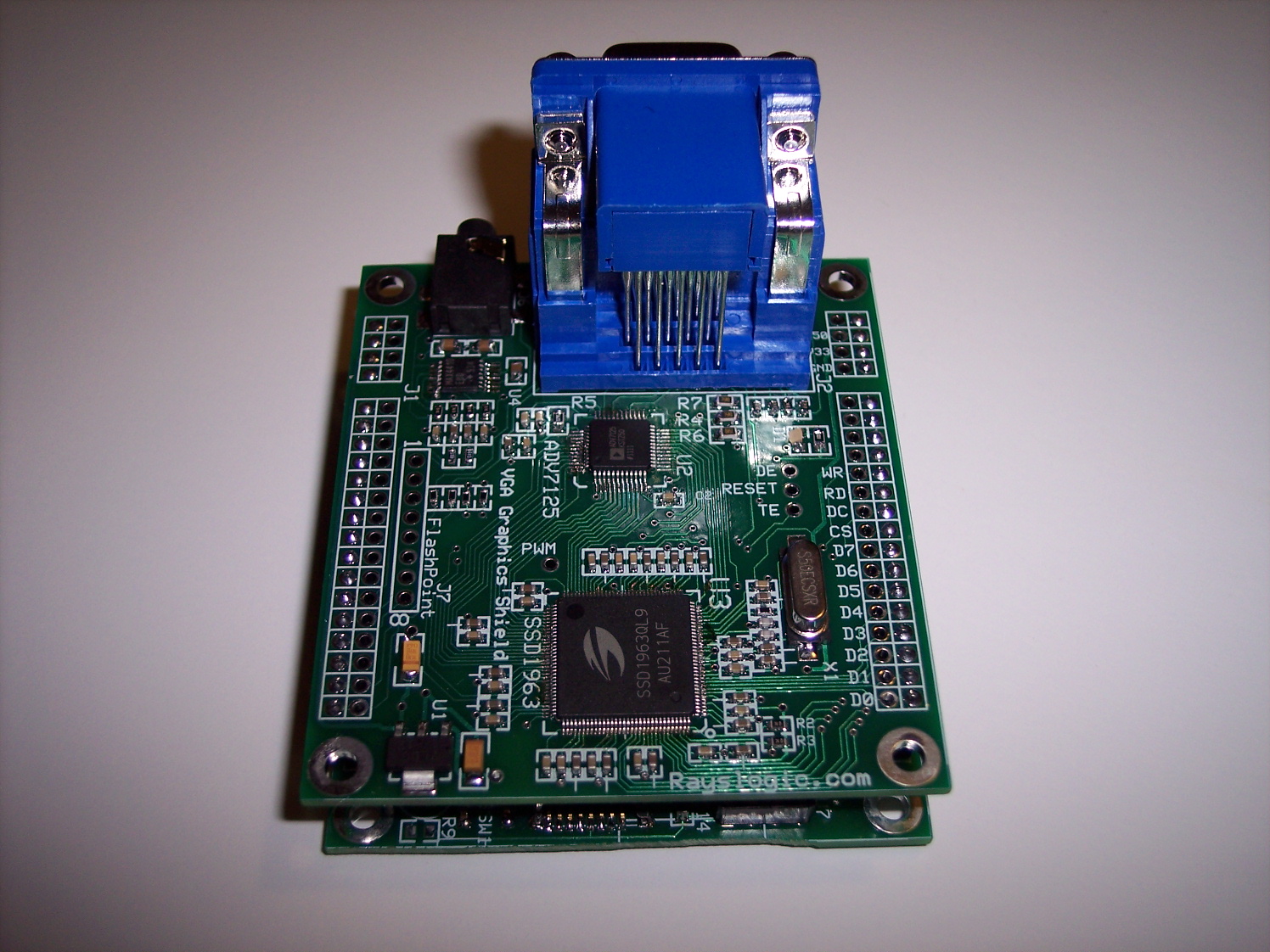

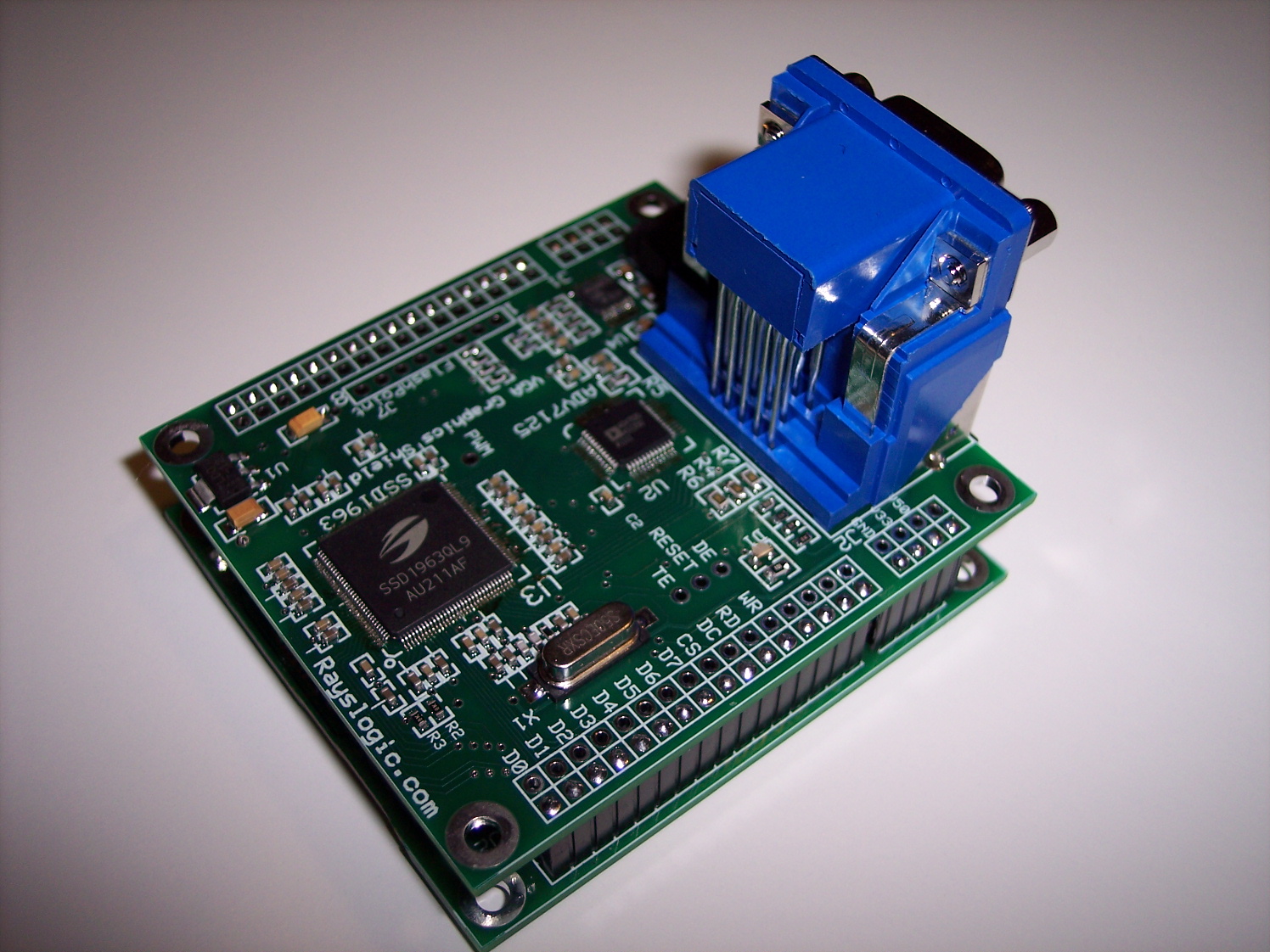

  <-- click to enlarge (shown with Propeller Platform Express and header pins, not included)
bullet

VGS also features a stereo headphone driver and keyboard and mouse connecters.

bullet

Price is $59 with free shipping.  To order, simple email ray@rayslogic.com and we'll send you a PayPal invoice with payment options.

bullet

Bundle with a PPE and save!  With order of both PPE and VGA Graphics shield, we'll install matching headers and the microphone circuit for free making this ready to go with no soldering required!

bullet

YouTube Video of Demo:

bullet

Basic Demo source code:

bullet

Demo#5 (download here):  Shows how to use 2 different custom fonts in text mode, how to display Windows BMP images from SD and also how to use the graphics primitives, such as line, point and circle.

bullet

Note:  The VGA Graphics Shield now shares it's driver with the DVI Graphics Shield.  So, code can be interchangeable.

bullet

There are just 2 settings at the top of the driver file that need to be adjusted to match your setup.

bullet

Advanced Demos:

bullet

Paint!  (download here):  Use a PS/2 mouse to draw in the screen

bullet
Note:  Advanced demos require reading from the SSD1963, which is known to have possible noise issues when the shield is not used with a Propeller Platform board.  It has been observed that adding a tiny, like 30 pF, capacitor between the RD signal and ground can fix this issue on non-Propeller Platform boards.
bullet

Schematics:

bullet

Download pdf here.

bullet

Hardware for connection to Propeller Platform

bullet

Headers allow you to easily connect the VGA Graphics Shield to a Propeller Platform (You can use headers to attach shields above or even below your PPE)

bullet

Headers are not included with VGA Graphics Shield

bullet

Usually we put female headers on the outer rows on both sides of Propeller Platform and male pins on the VGA Graphics Shield

bullet

Here are Digikey part numbers for what we use:

bullet
16-position female header, single row:  929974E-01-16-ND
bullet
Note:  You can just use wire cutters to cut one up to make the 4-pin header (you do lose one position this way).
bullet
Longer length male pins, 36-position, single row:  S1211E-36-ND
bullet
The longer length is better for the VGA Graphics Shield to give clearance.
