Quick Media Player (QMP)

bullet

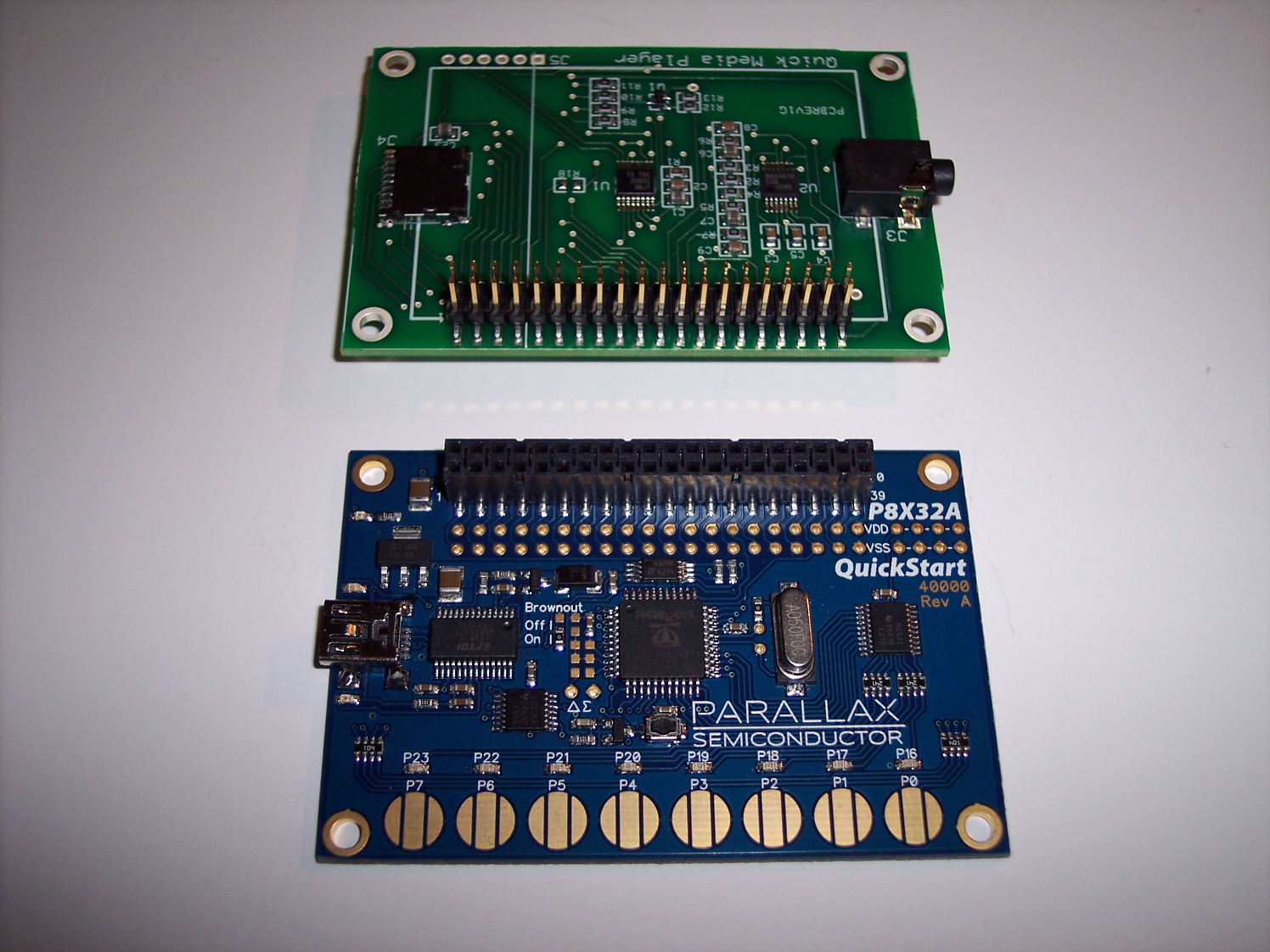

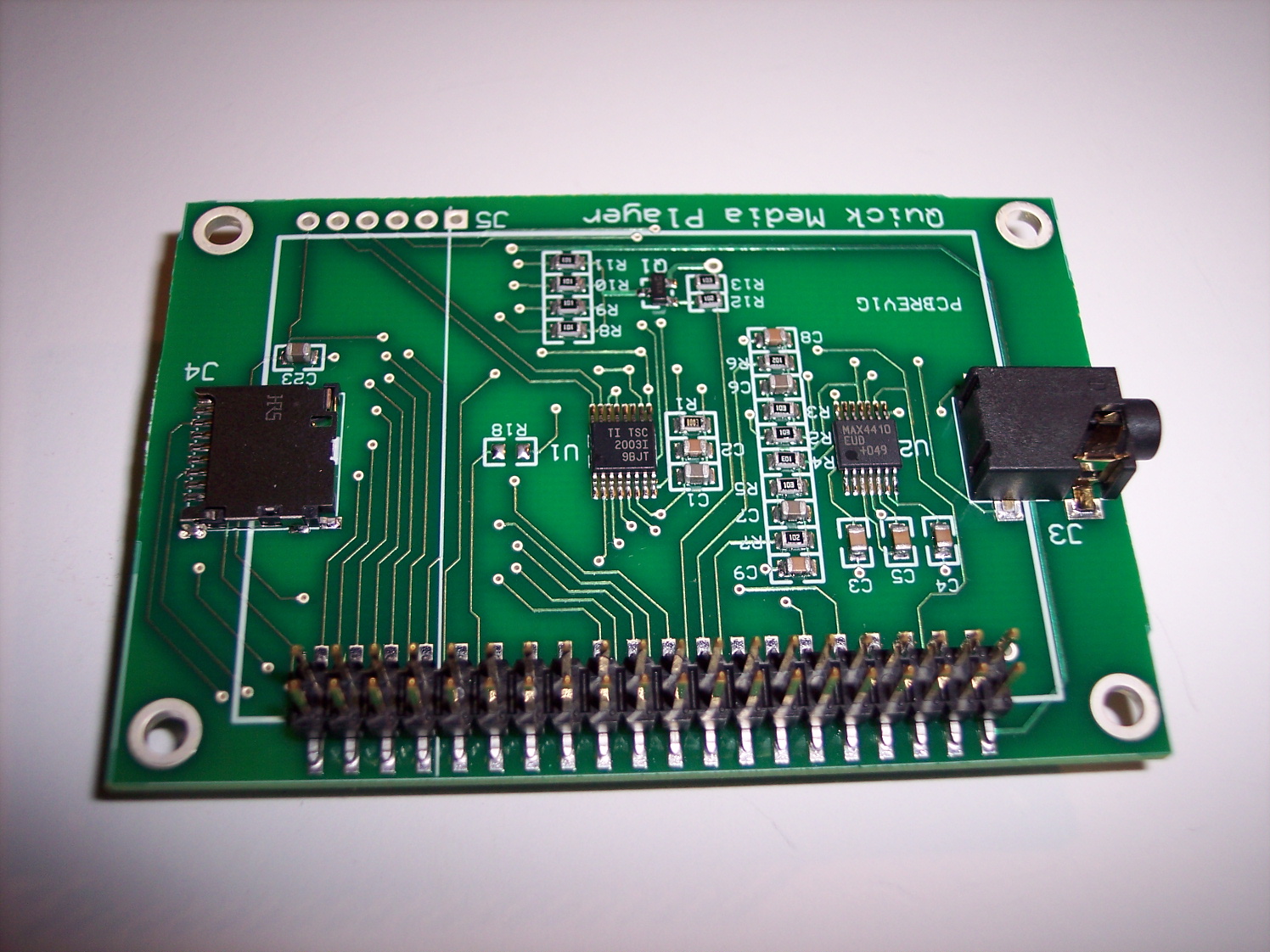

Simply plug the Quick Media Player (QMP) into your Parallax Quickstart board and add a 2.4" touchscreen with micro-SD card and stereo headphone amplifier:

bullet

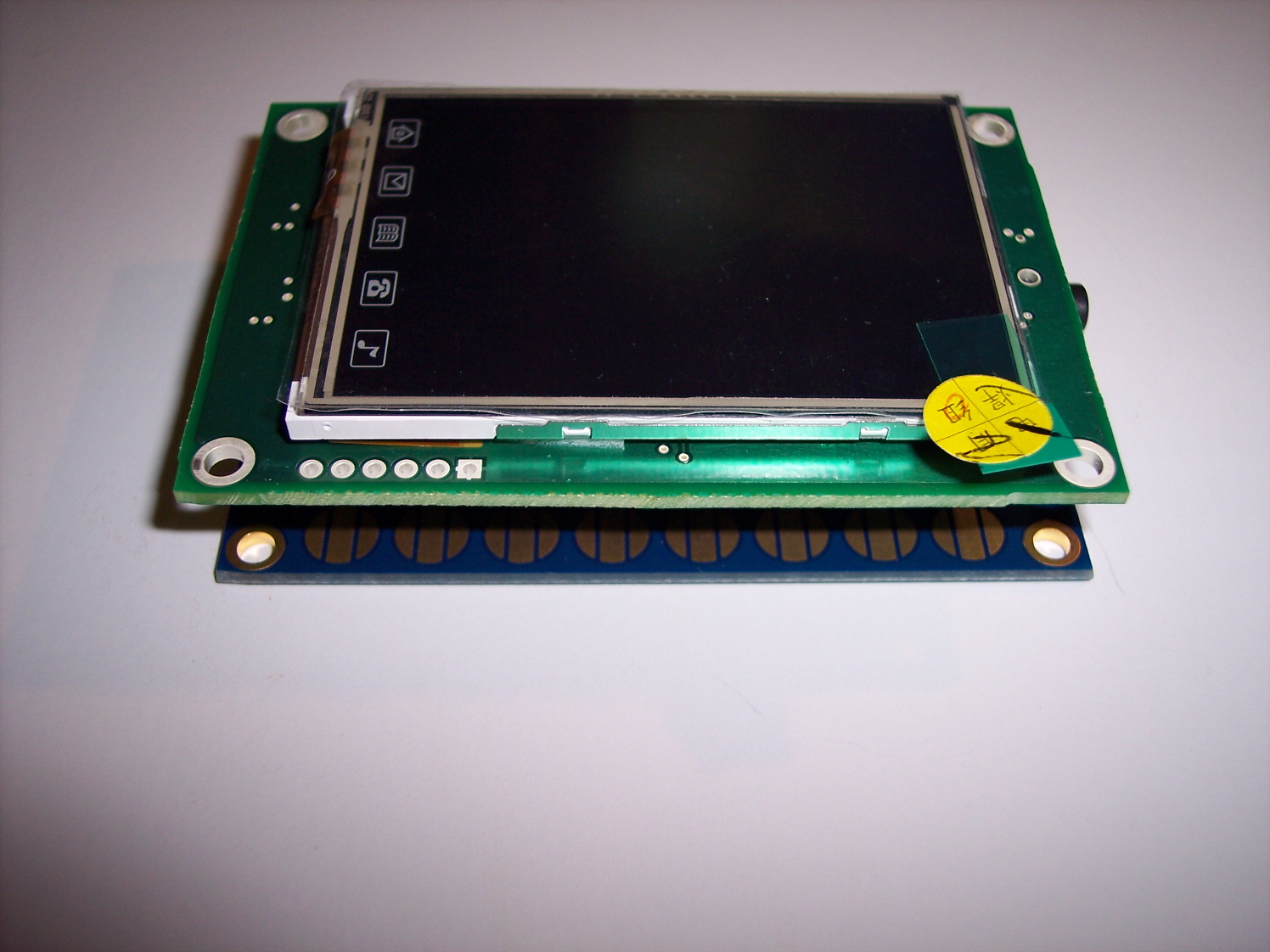

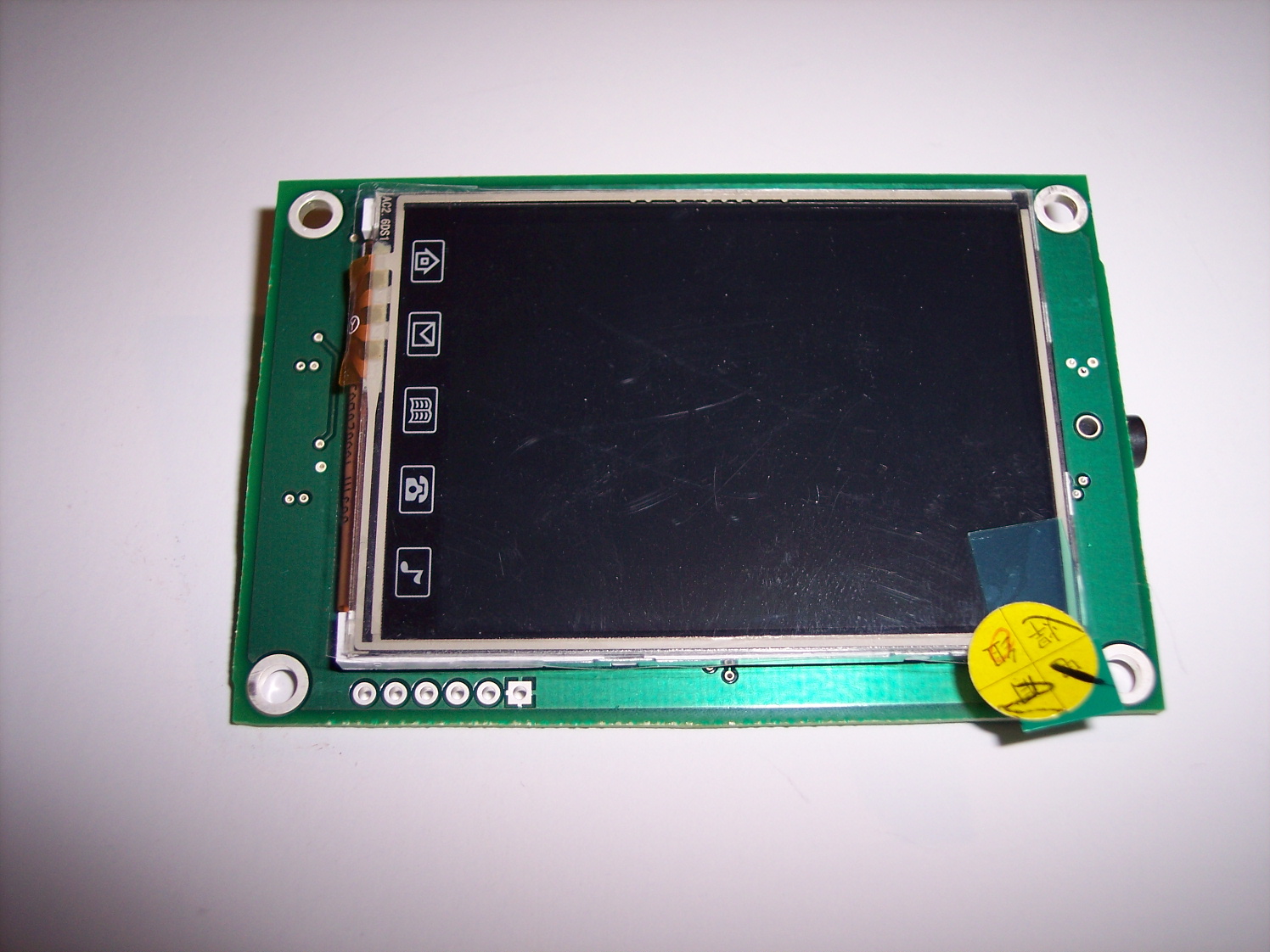

       <-- click to enlarge (Quickstart and uSD card not included, remove protective film on screen by lifting yellow circle)
bullet

QMP can play 16-bit stereo wav files, show 24-bit Windows bitmap images in 320x240 resolution and read/write micro-SD cards.

bullet

Price is $39 with free shipping (domestic).  To order, simple email ray@rayslogic.com and we'll send you a PayPal invoice with payment options.

bullet

Demos with source code:

bullet

Demo with new driver:  Use custom fonts, shows bmps and many primitives.

bullet

Note:  QMP sold after 1 May 2013 have a newer version of the Newhaven 2.4" LCD.  At this moment, you can use the above demo by simply replacing the display driver with this version for the new ILI9340 controller.  The demos below still require modification to work with this new controller.

bullet

YouTube video of new demo

bullet

Paint:  Draw on the screen using a stylus

bullet

Use the buttons to change colors

bullet

Slideshow:  Show Windows bitmap files from uSD card

bullet

Two example images to be loaded onto your uSD card are included

bullet

WavPlayer:  Plays .wav files from uSD card

bullet

Wav files need to be uncompressed 16-bit PCM format

bullet

Graphics Demo:  Replicates the famous Parallax Propeller Graphics Demo for TV

bullet

This version reproduces the original's resolution so it doesn't fill the screen.

bullet

Schematics:

bullet

Download pdf here.

bullet

Usage Notes:

bullet

VIN supply voltage should not exceed ~5 VDC.

bullet

When powered by USB, VIN is 5 VDC.

bullet

Powering the Quickstart directly with a 9V battery would exceed the backlight current limit and damage the display.

bullet

It is probably safe to use power from 4 AA or AAA cells though as that is about 6 V but goes through a diode, which would drop it a bit.

bullet

Datasheets:

bullet

Datasheet for the NewHaven 2.4" touchscreen
