PropRGB  Now Available!

bullet

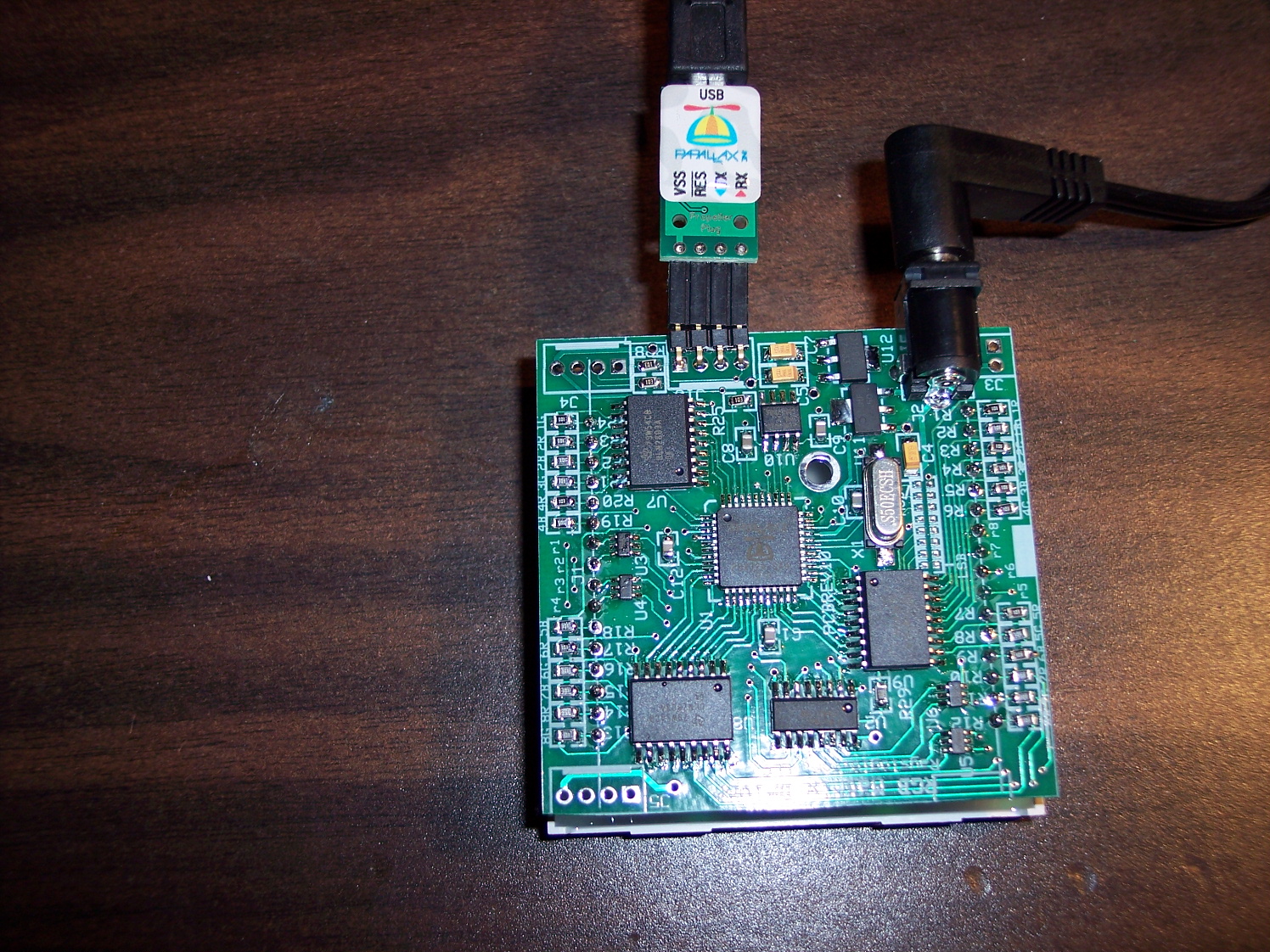

PropRGB is a Propeller based driver board for an 8x8xRGB LED matrix

bullet



bullet

Allows for 24-bit color with video speeds

bullet

Special hardware ID system allows for multiple boards to be daisy-chained to together.

bullet

Initial pricing is $40 for the driver board and $15 for the matrix

bullet

Priority Mail shipping is $5 via USPS, international shipping is $13

bullet

Things you'll need:

bullet

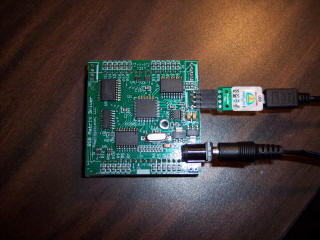

A PropPlug or equivalent device is currently required to program the onboard Propeller chip.  Here's how the PropPlug should be connected:

bullet



bullet

A DC power supply.  The typical 6 to 9 VDC power supplies that are used with other Propeller boards will work fine.  The supply should be rated for at least 300 mA as the PropRGB draws about 400 mA with all LEDs on full.

bullet

Betlux LED Matrix datasheet (download here)

bullet

Betlux part number is BL-M23B881RGB

bullet

Matrix is the common anode type.

bullet

Schematics (click to expand):

bullet

To order, just  Email Me with your order (click button to email to ray@rayslogic.com).

bullet

Example Code:

bullet

PropRGB Demo1:  Demonstrates how to use the driver in either direct or buffered modes to set pixels to any color

bullet

PropRGB Serial Interface:   Control the PropRGB from a PC using a PropPlug (or equivalent) connection.

bullet

You'll need this Windows App and this Spin Program loaded on the PropRGB.

bullet

You'll need to tell the program which serial (com) port your PropRGB is connected to when opening the connection.

bullet

Select left mouse color and right mouse color and start drawing!

bullet

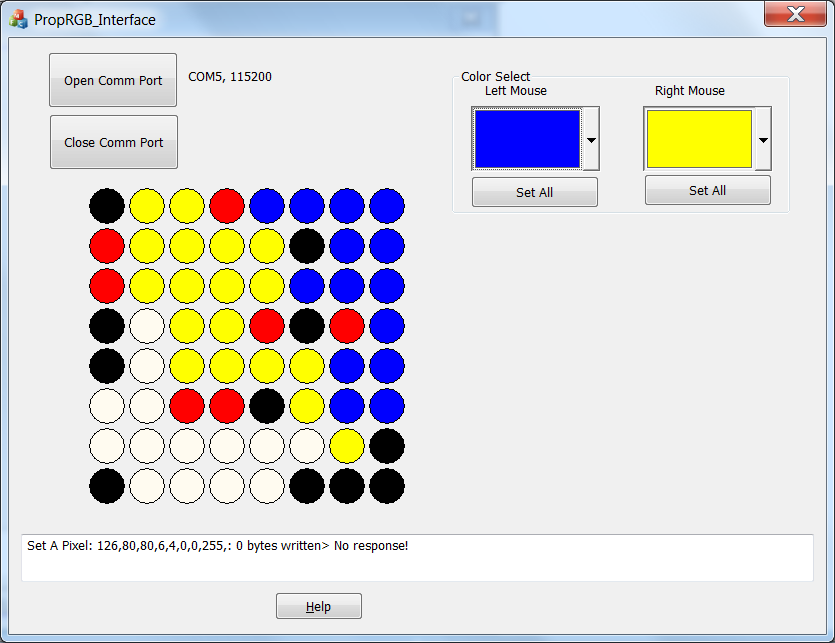

Screenshot:
