Schematics

Home Up

bullet

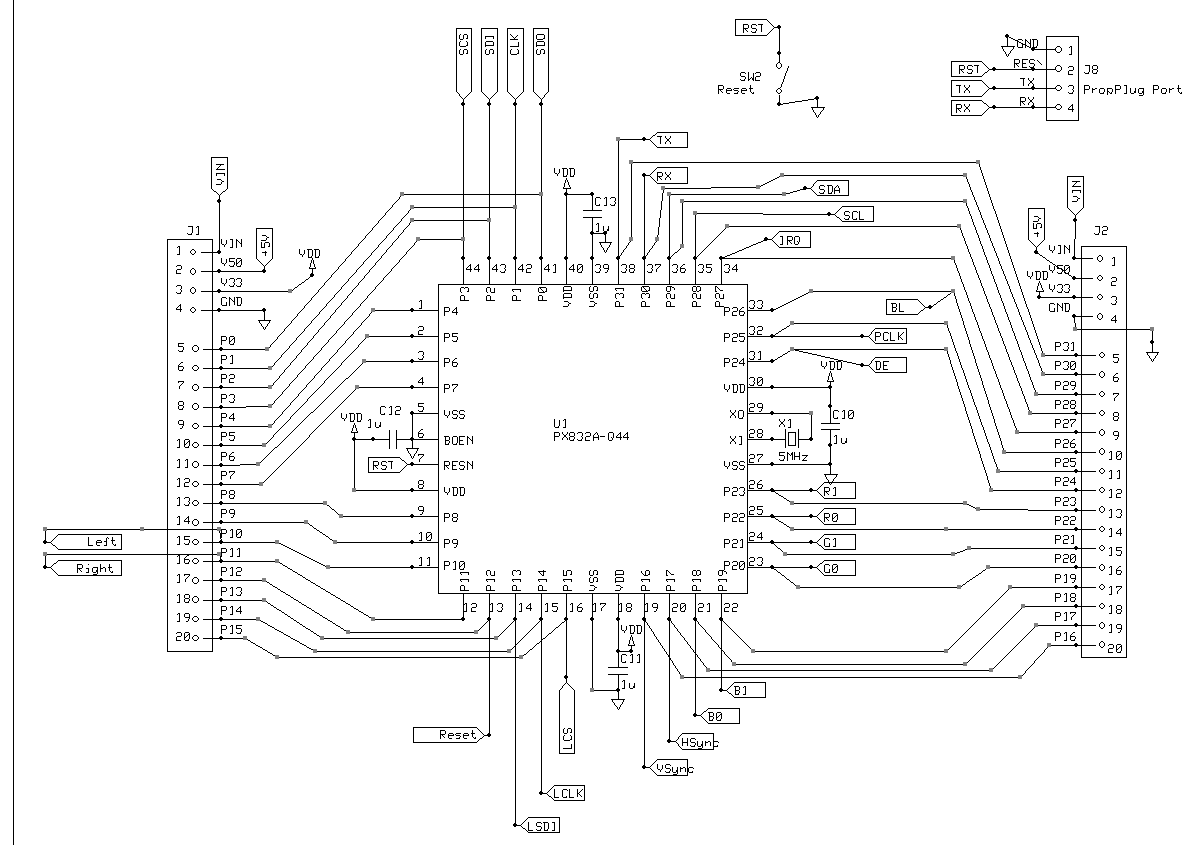

Propeller Connection Schematic

bullet

bullet

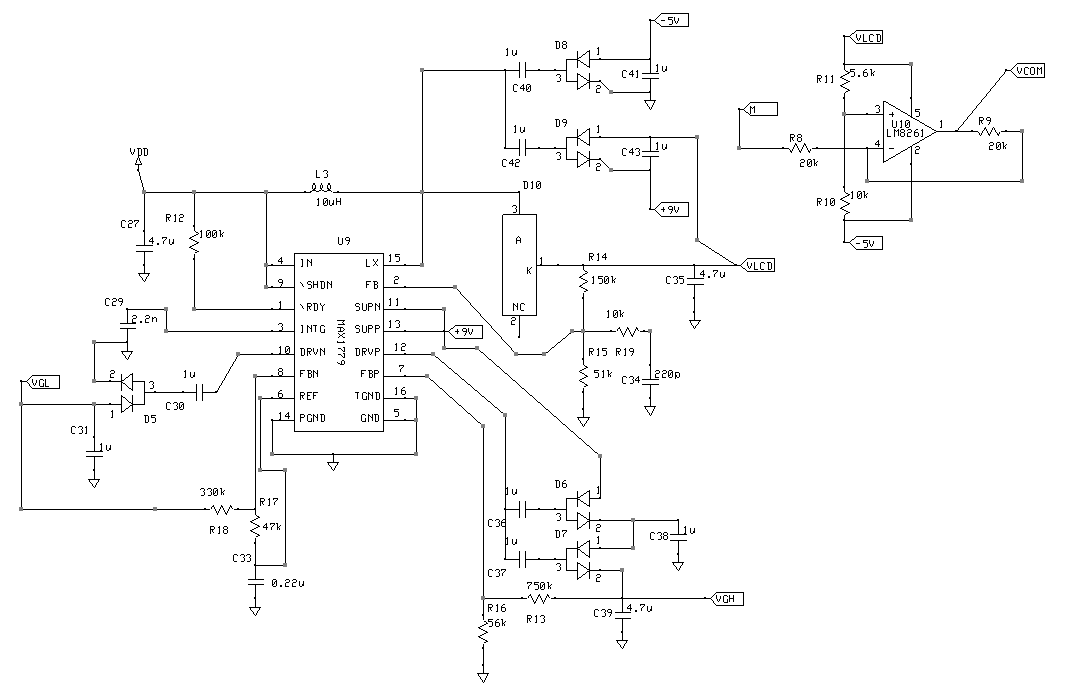

Lcd Bias Power Supply Schematic

bullet

bullet

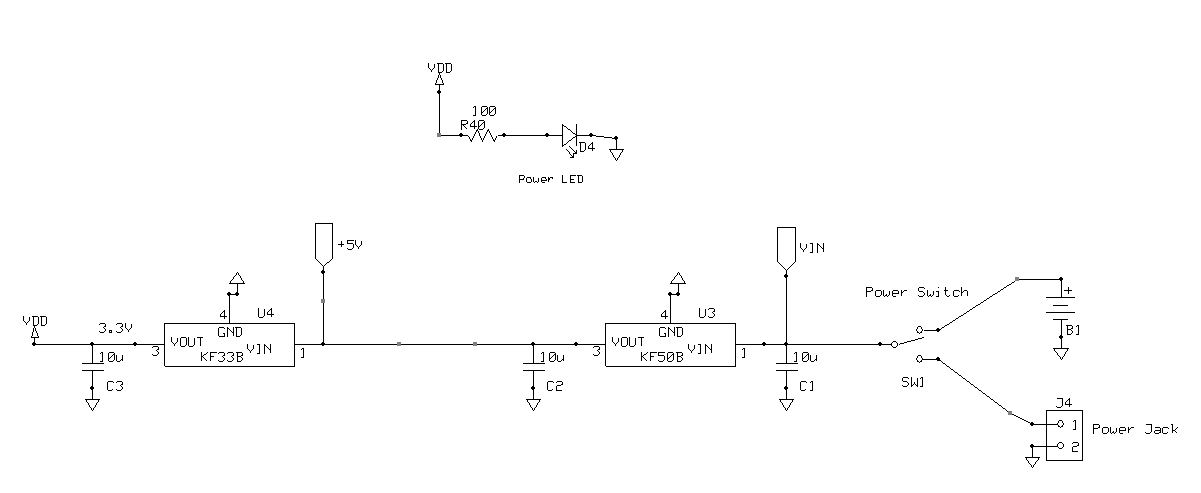

Power Supply Schematic

bullet



bullet

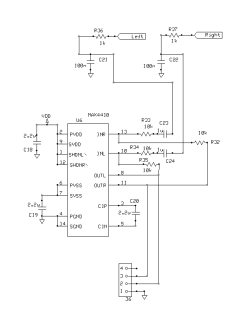

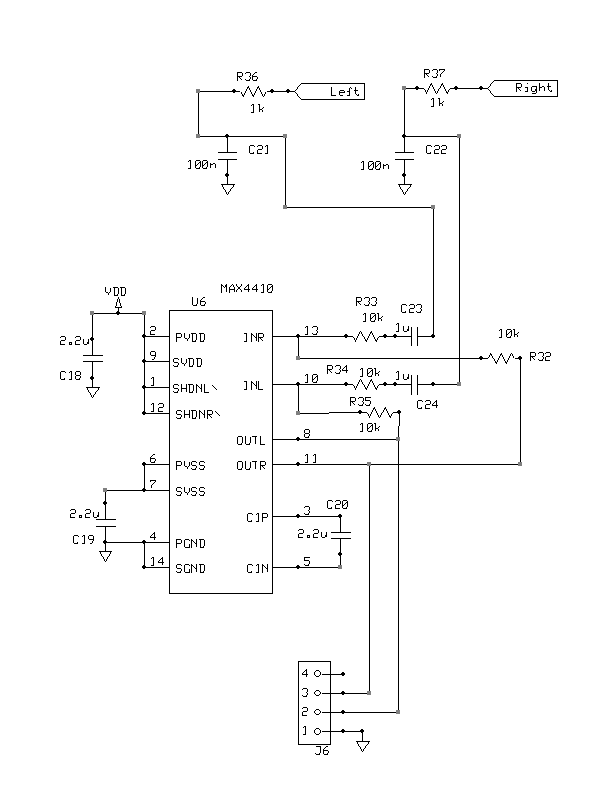

Audio Schematic

bullet



bullet

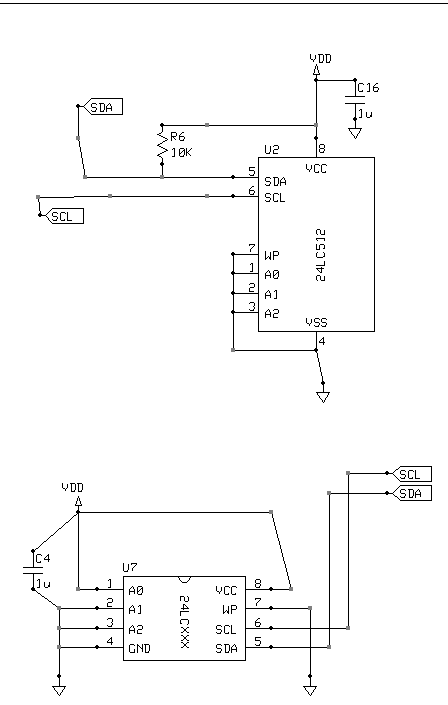

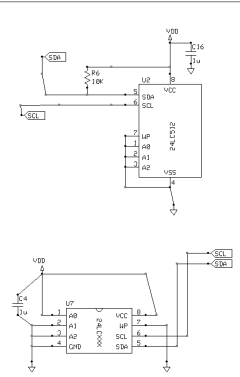

EEPROM (&Spare EEPROM socket) Schematic

bullet

bullet

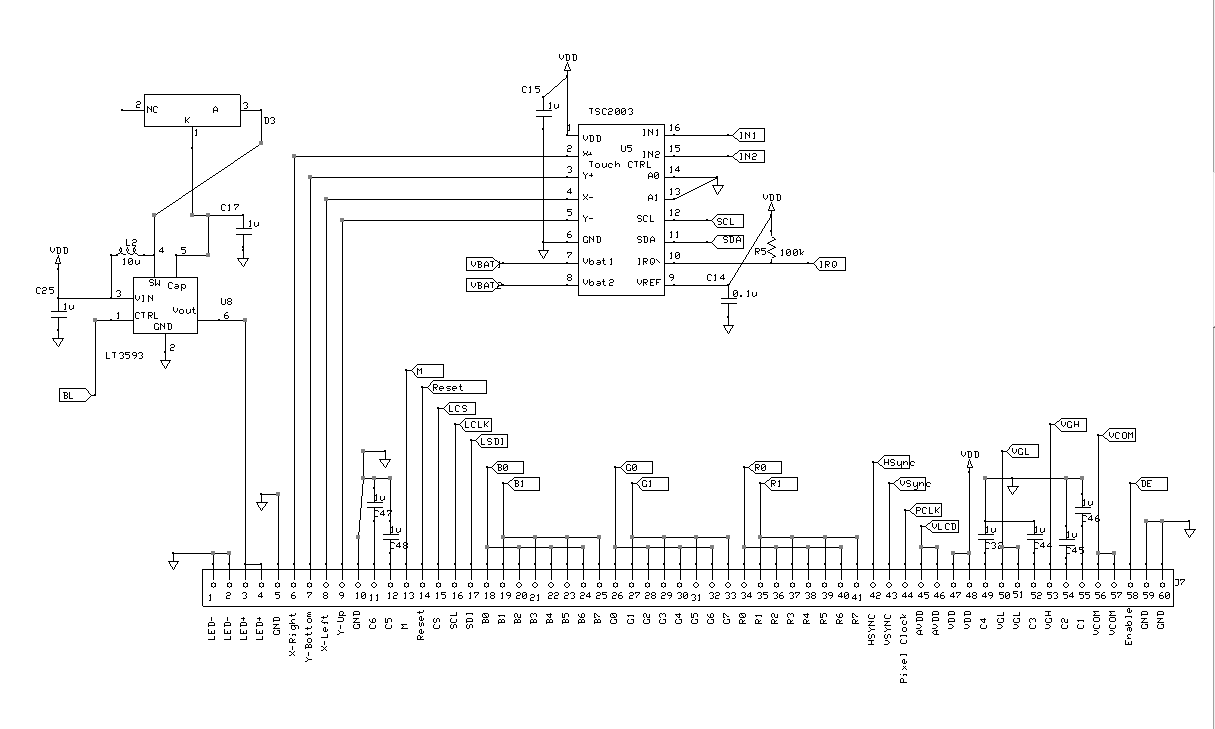

LCD Connector Schematic

bullet



bullet

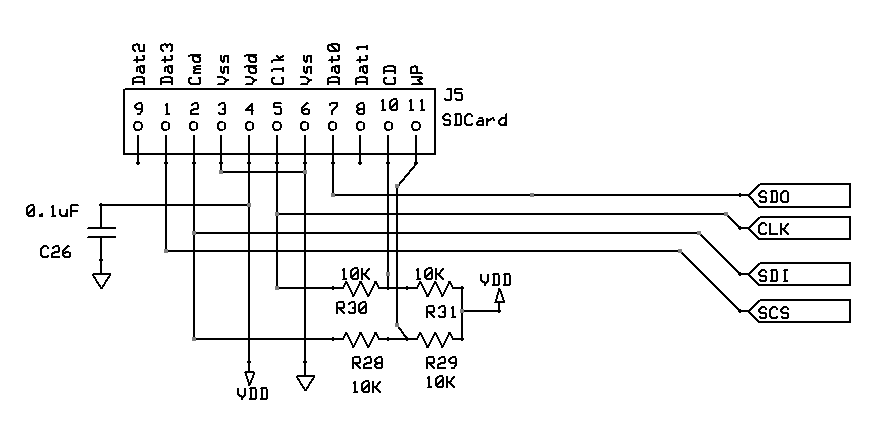

SD Card Schematic

bullet
