4.3" Touchscreen LCDs

Home Up

Breakout Boards

bullet

Used 4.3" Touchscreen LCD for $5 (with purchase of breakout board)

bullet

Update:  There are <100 used screens left.  The are in good condition, but may have a light scratch or two.

bullet

Like New 4.3" Touchscreen LCD for $25 (with purchase of breakout board)

bullet

These screens have had their touchscreen replaced with a new one, so they are good as new.

bullet

Breakout Board board price reduced to $19.99 with free shipping.

bullet

bullet
  Photo of LCDs as I get them, in layers of 10...
bullet

Here is the datasheet for the display.  Note that company specific info has been redacted.

bullet

These displays are pulled from units returned to the factory of a major device manufacturer.  (The don't want me advertising their name or logo.)  All units are tested for basic functionality before shipment, but they are in USED condition and are sold "AS IS".

bullet

SMT connector is 60-pin, 0.5-mm pitch FPC connector.  I'm using Digikey part# 609-3439-1-ND.  Here is the datasheet for the connector

bullet

Connectors also for sale for $1 each.

bullet

A prototype breakout board has been successfully tested and will be available by the middle November.  Another breakout board is for sale as indicated in this Parallax Propeller User Forum Thread.  Note that my breakout board and drivers are for 6-bit color, the same as the Parallax VGA driver.  In fact, the driver is just a modification of the VGA driver.  However, a breakout board with all 24 color pins brought out is being sold by another forum member.

bullet

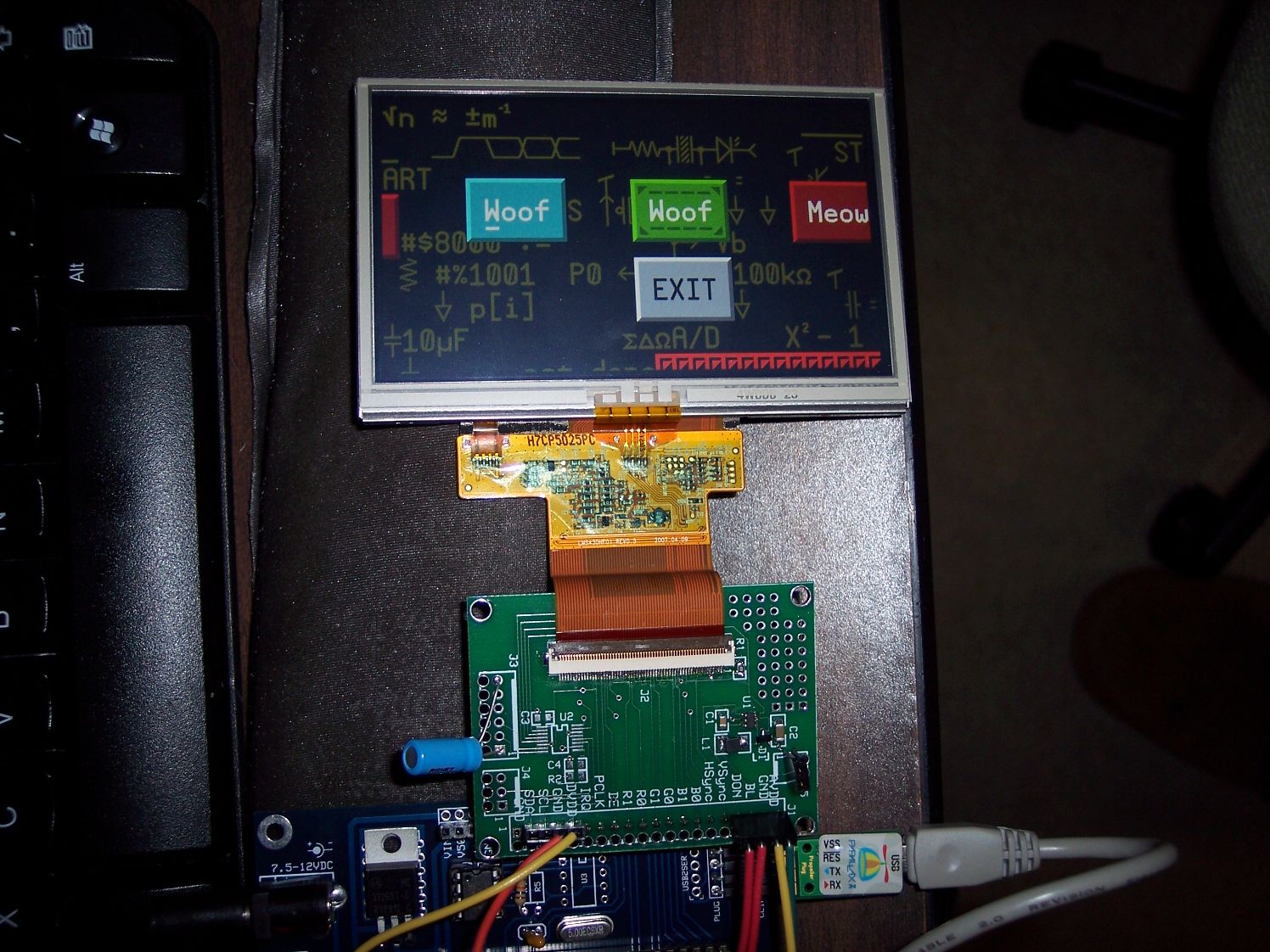

Here are photos of the display working with prototype PSB and breakout boards:

bullet



bullet

The ExpressPCB schematic and PCB layout for the prototype breakout board have been posted to the forum thread linked to above.  Note that an additional Vdd capacitor has been added to the final board for cases where long wires to the board may be used.

bullet

Breakout Boards

bullet

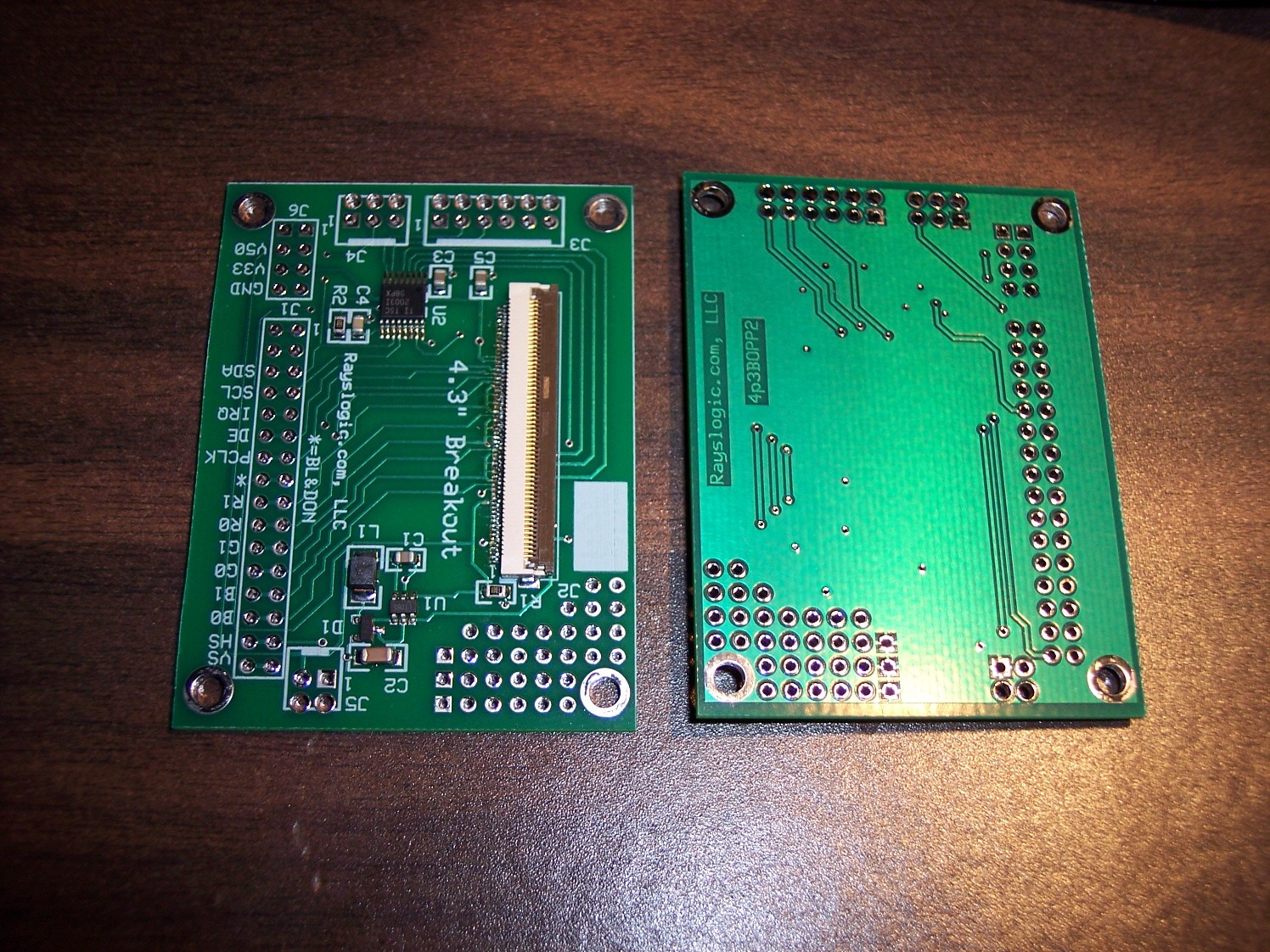

  The regular version is for the Propeller Platform and general use:

bullet

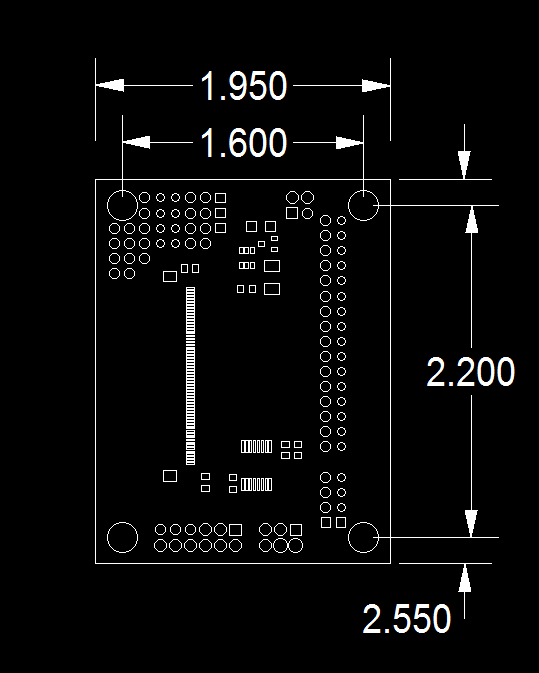

    (Note: overall dimensions may vary)

bullet

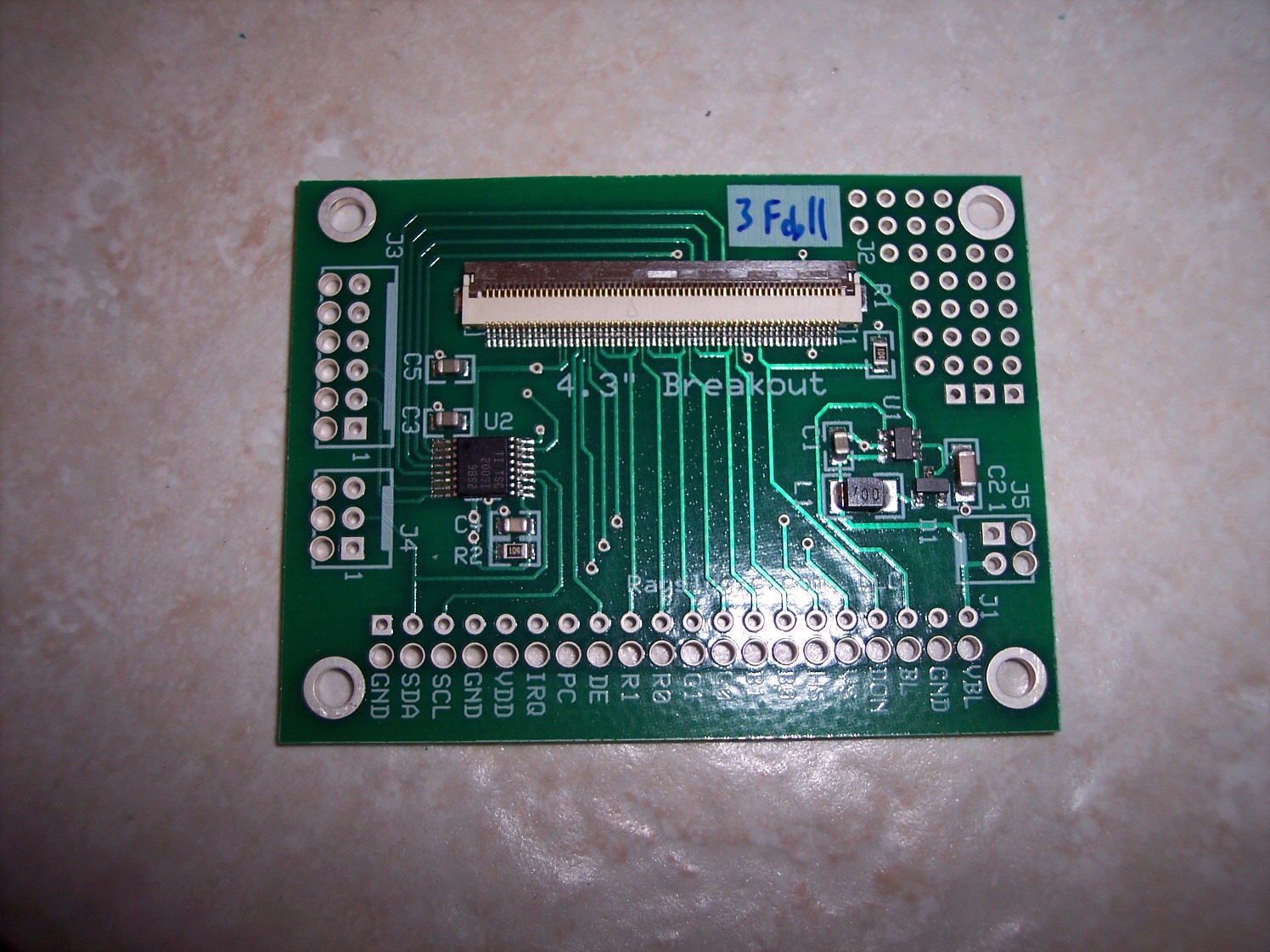

This version is available in limited qty. (only real difference is that BL&DON pins are tied together to save a pin with the PropPlatform version).

bullet

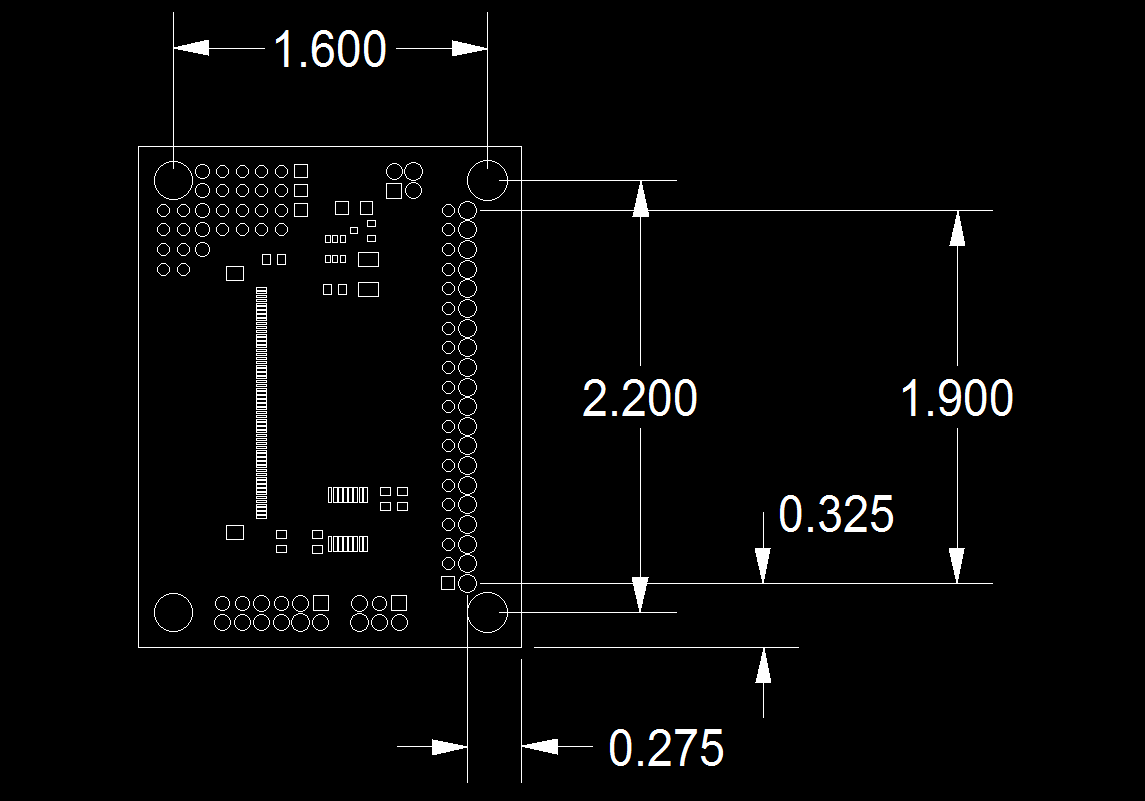

  (Note: overall dimensions may vary)

bullet

Incorporates backlight and touchscreen controllers

bullet

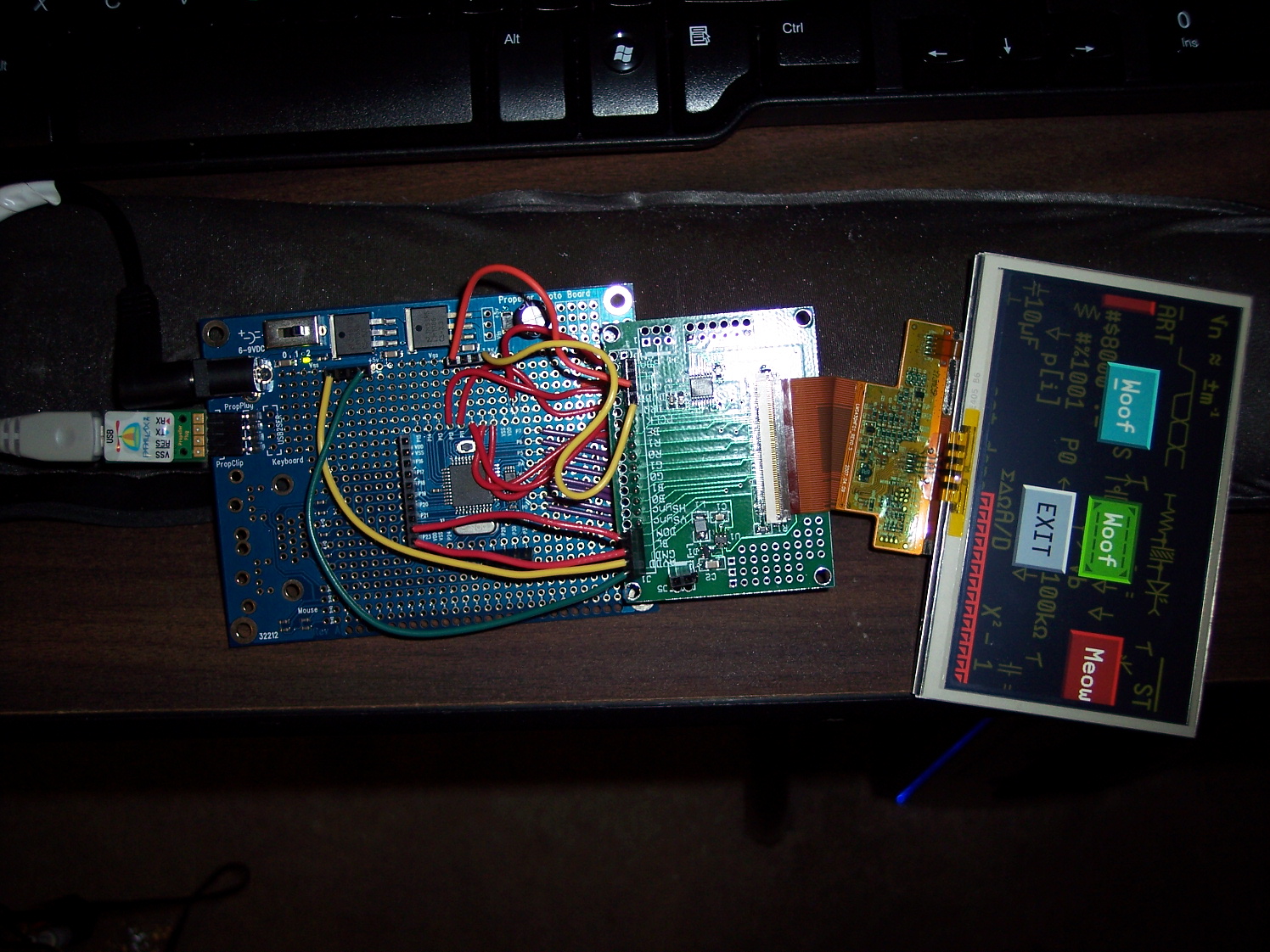

Here's an example of how to use the breakout board to connect the 4.3" LCD to a Parallax Propeller Protoboard:

bullet

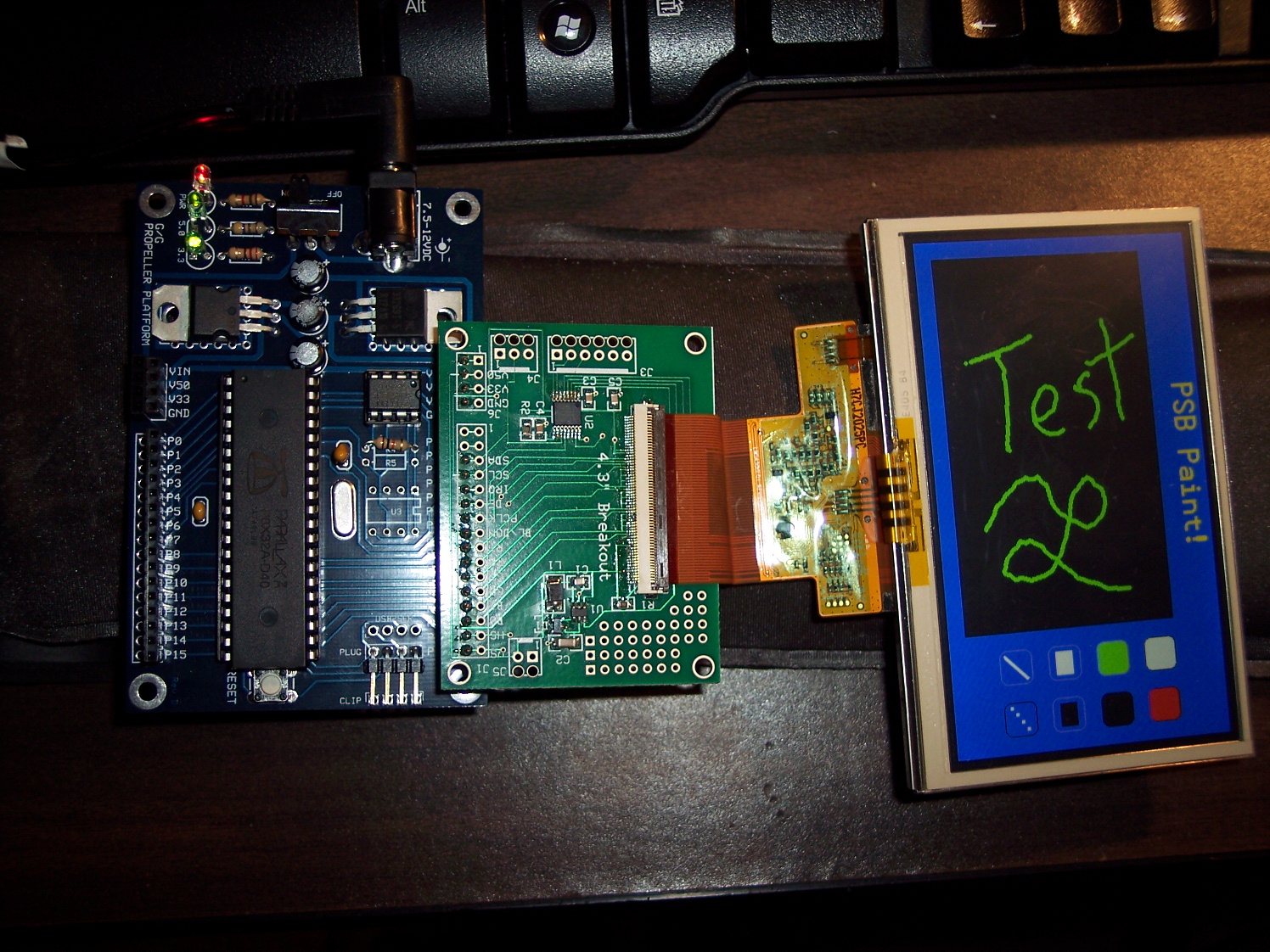

A Propeller Platform version just plugs into a Prop Platform board...

bullet

bullet

CODE:  Here's the new code with pin dependencies abstracted to the CON section:

bullet

PSB_Paint - Draw on your touchscreen with a stylus

bullet

PSB_VGA_Demo - This is the Parallax VGA demo modified to work on this screen.

bullet

PSB_Graphics_Demo - This is the Parallax Graphics demo modified to work with this screen.

bullet

Update:  You can now use the Prop Platform style breakout on the lower row of pins.

bullet

Click here for forum page where code example is located.

bullet

 Ordering Info

bullet

Email to ray@rayslogic.com Email Me with your order.  (please indicate if international shipping).

bullet

Note:  Due to limited supply, the "gently used" LCDs are now only being sold with breakout boards.
