PSM Accessory Board (PAB) (Coming Soon!)

bullet

The PSM BCKVM accessory mates to the back of the PSM with matching headers and hole pattern.

bullet

Provides:

bullet

Battery power via two AA cells

bullet

Real-time clock with lithium battery backup

bullet

Video, Keyboard, and Mouse connector

bullet

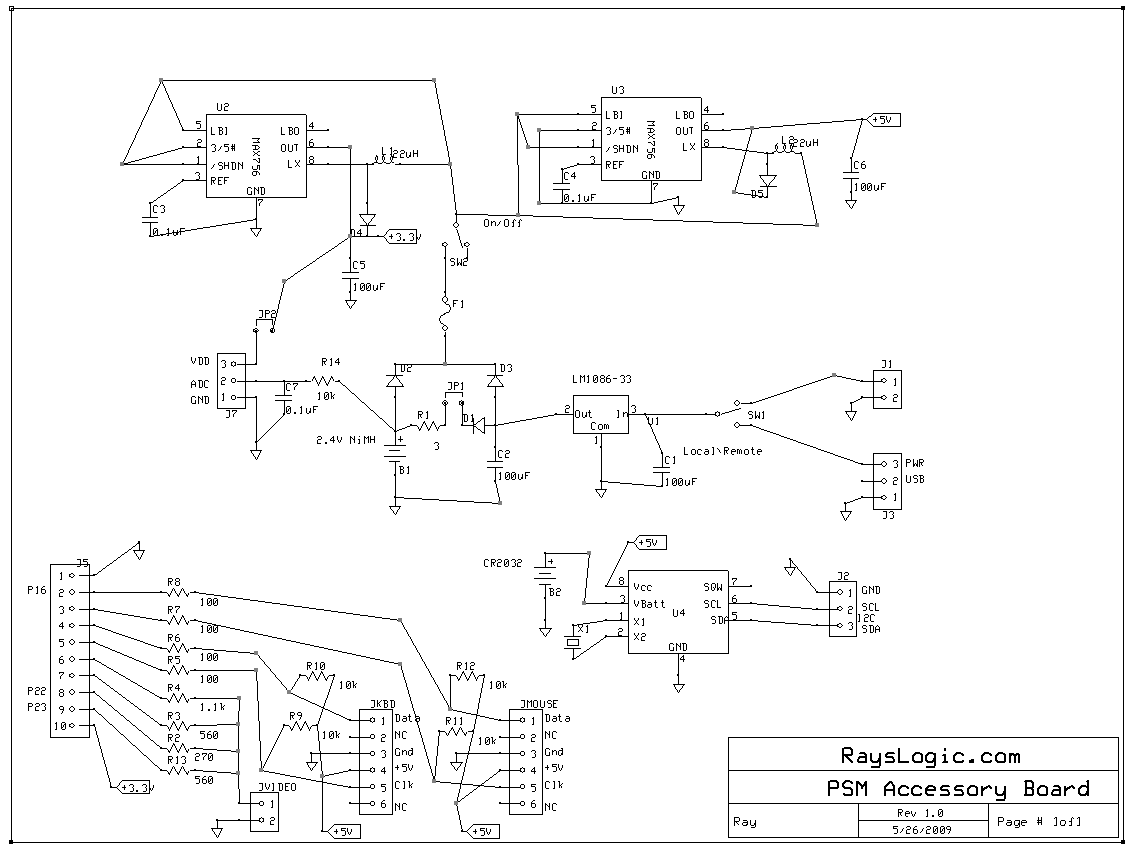

Here's a circuit diagram (needs cleaning up!):

bullet



bullet

Here are some photos:

bullet

Fully assembled with servo and extra cap:    (Mounted to PSM)

bullet

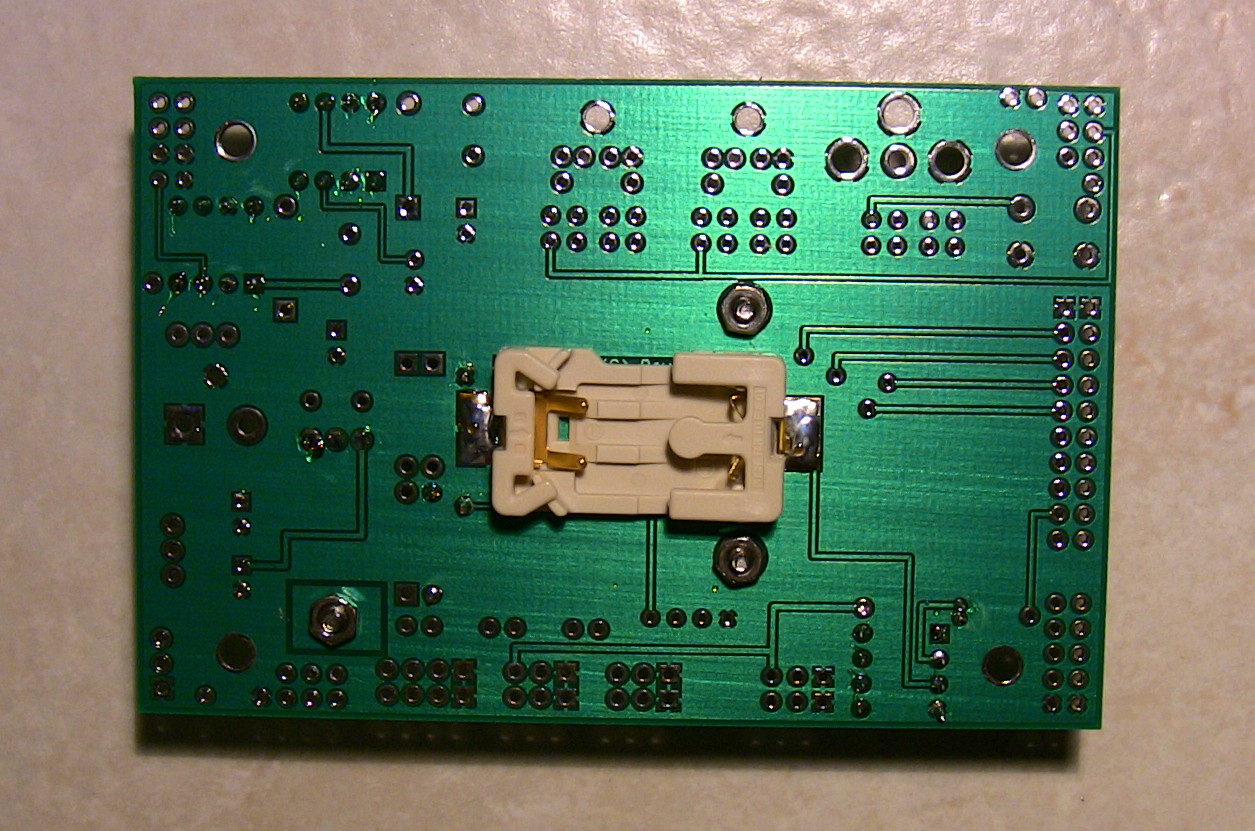

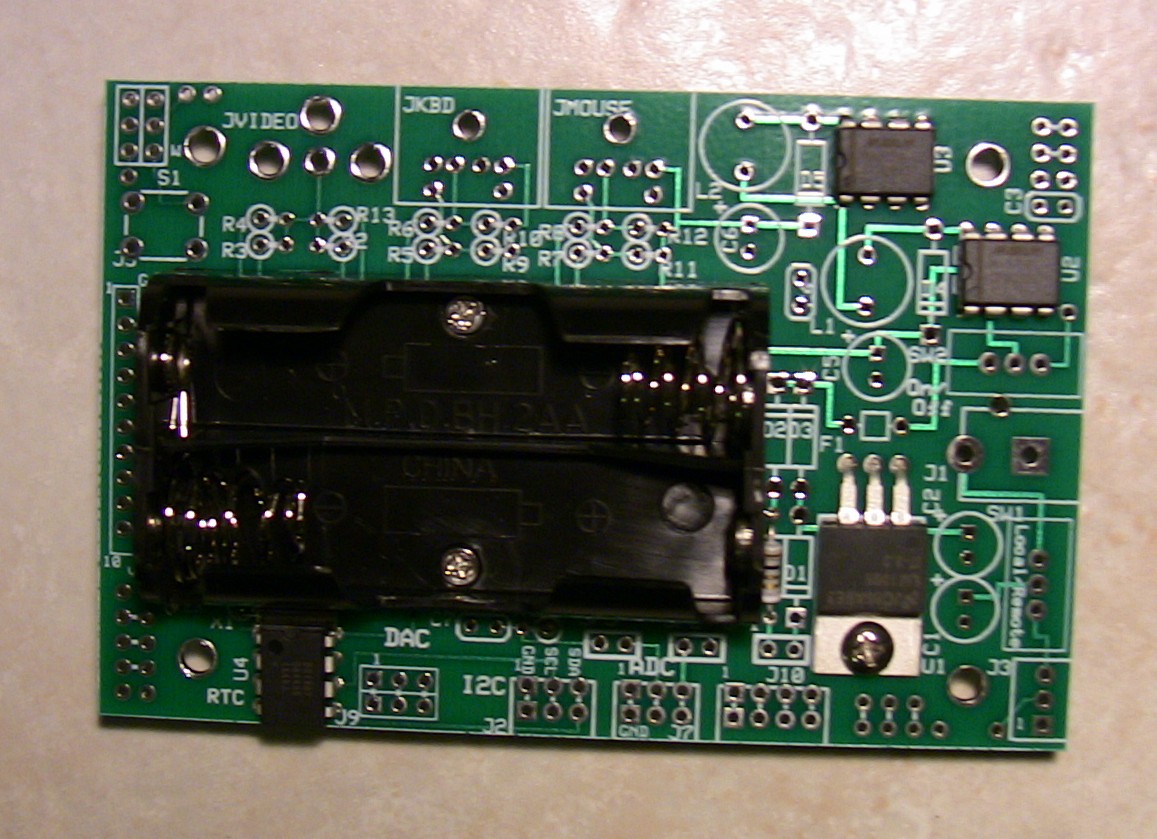

Kit comes partially assembled:

bullet

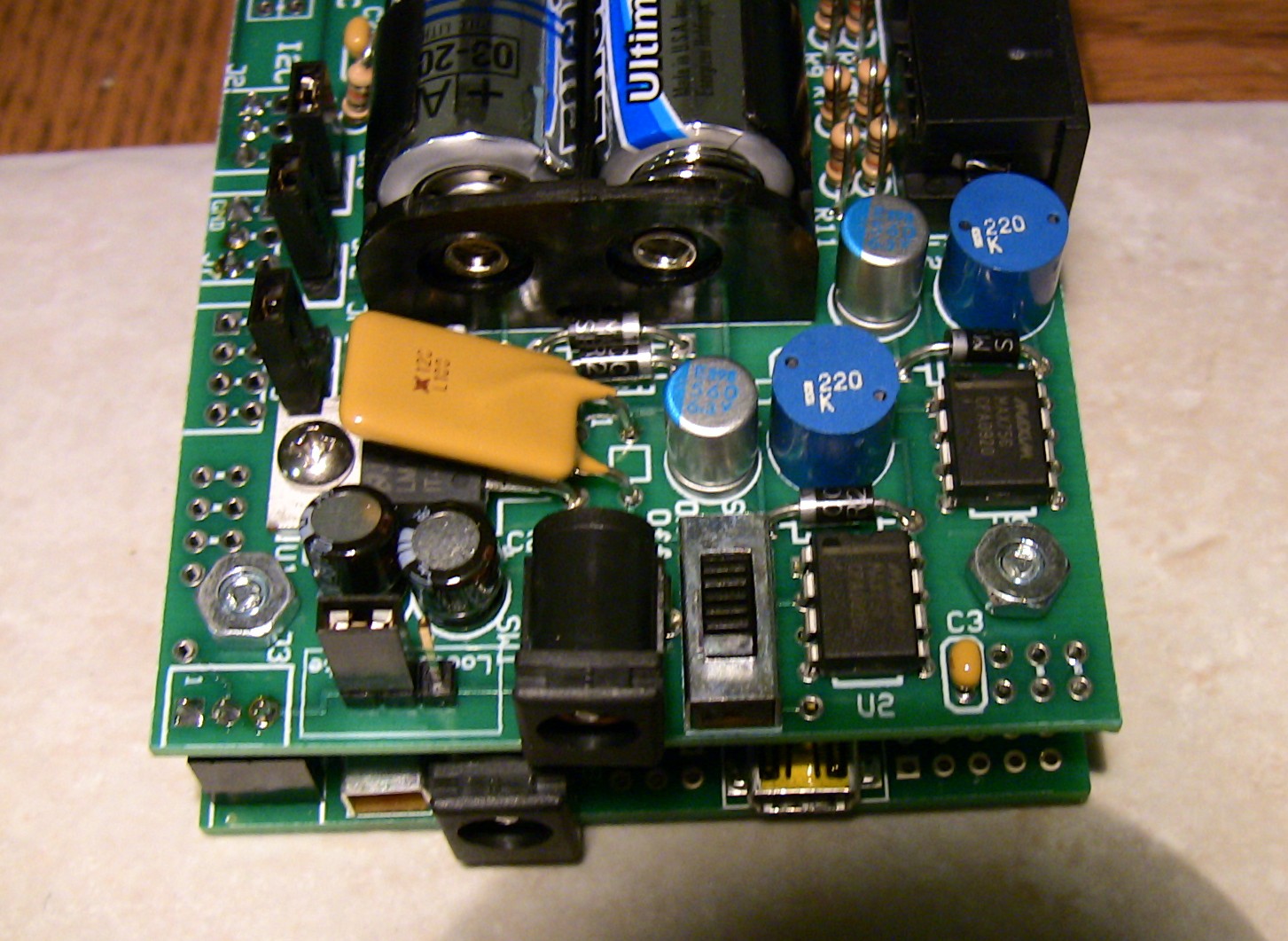

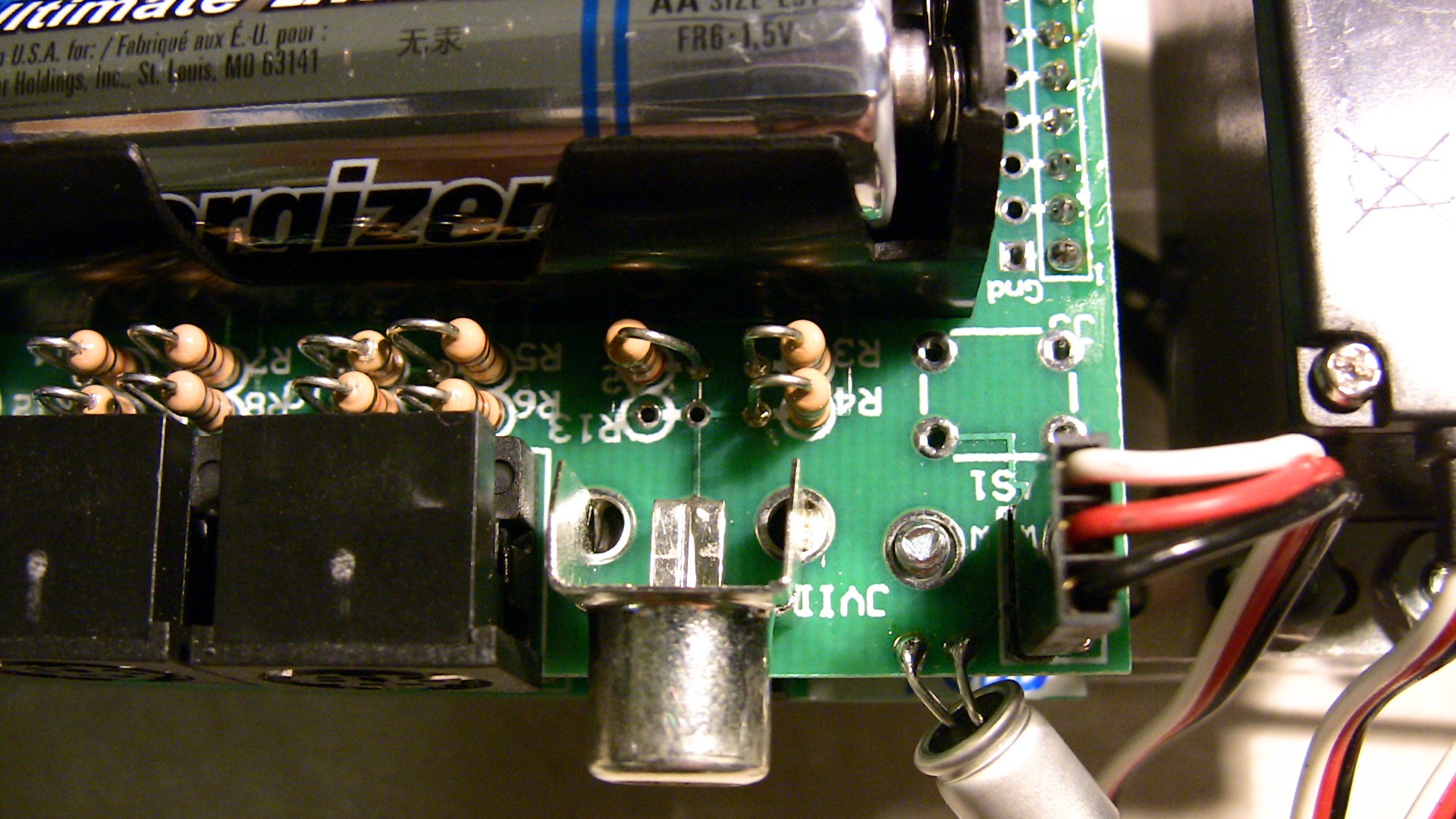

Close ups of completed unit:

bullet

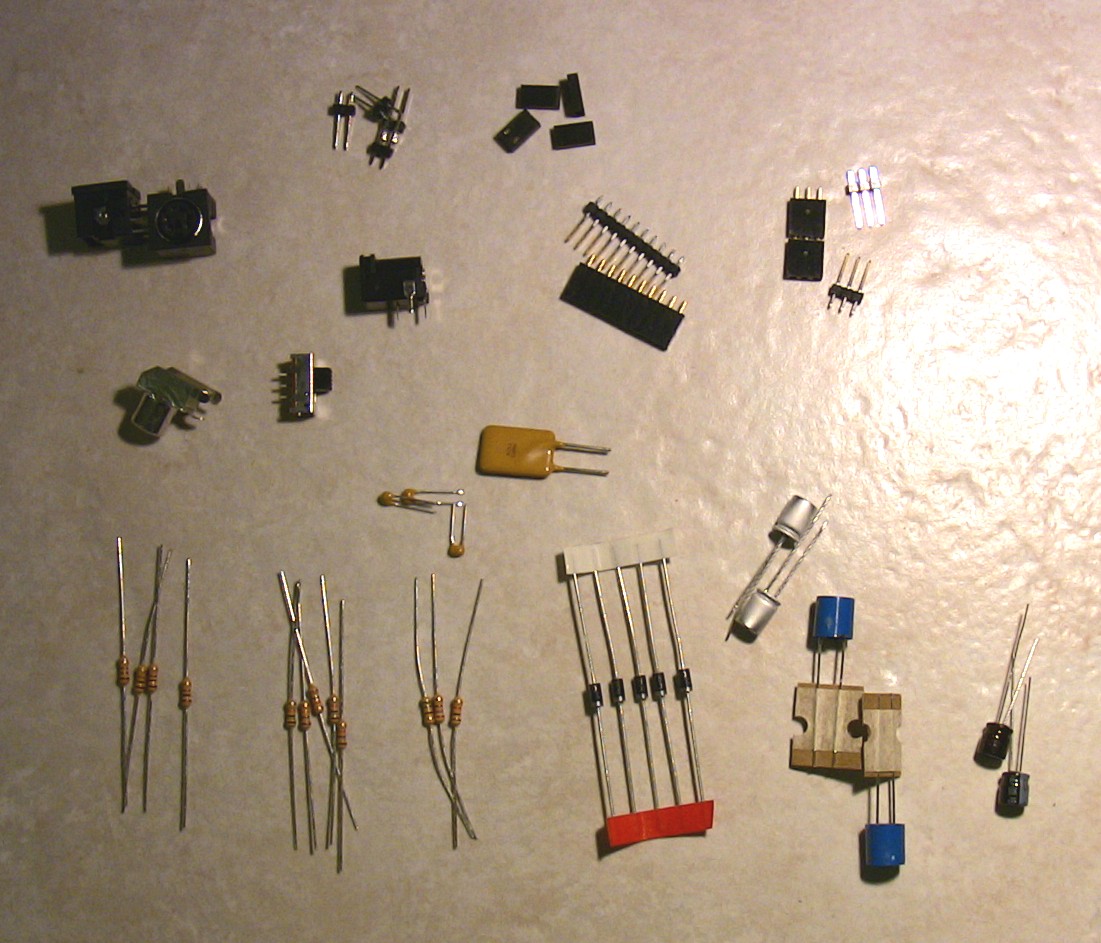

Parts to complete kit:
