NH4:  Adapter for Newhaven 4.3" resistive (and now capacitive touch!) touchscreens   Now Available!

bullet

bullet

Introductory low price is $19.99 with free shipping.

bullet

To order, just email to ray@rayslogic.com and we'll send you a PayPal invoice.

bullet

The NH4 is essentially the same as our Samsung 4.3" touchscreen adapters, just modified and fine tuned for the Newhaven 4.3" touchscreens that are available from Digikey and Mouser.

bullet

All code for the Samsung (PSB) displays is easily modified to run on NH4, such as the Paint program:

bullet

bullet

The NH4 is designed to plug directly into the upper row of pins on a Propeller Platform compatible board, but it can easily be used on a breadboard or other Propeller proto setup also.

bullet

Here's a photo of the NH4 connected to a Propeller Platform and a Newhaven 4.3" LCD:

bullet



bullet

Note that this is a "bottom contacts" only connector, so it won't work if plugged in upside down.

bullet

Update:  Newhaven displays now with better polarizer

bullet

New compatible part numbers are:

bullet
NHD-4.3-480272EF-ATXL# [product link] [datasheet]  (not touch)
bullet
NHD-4.3-480272EF-ATXL#-T [product link] [datasheet]  (resistive touch)
bullet
NHD-4.3-480272EF-ATXL#-CTP [product link] [datasheet]  (capacitive touch [needs adapter])

bullet

Capacitive Touch

bullet

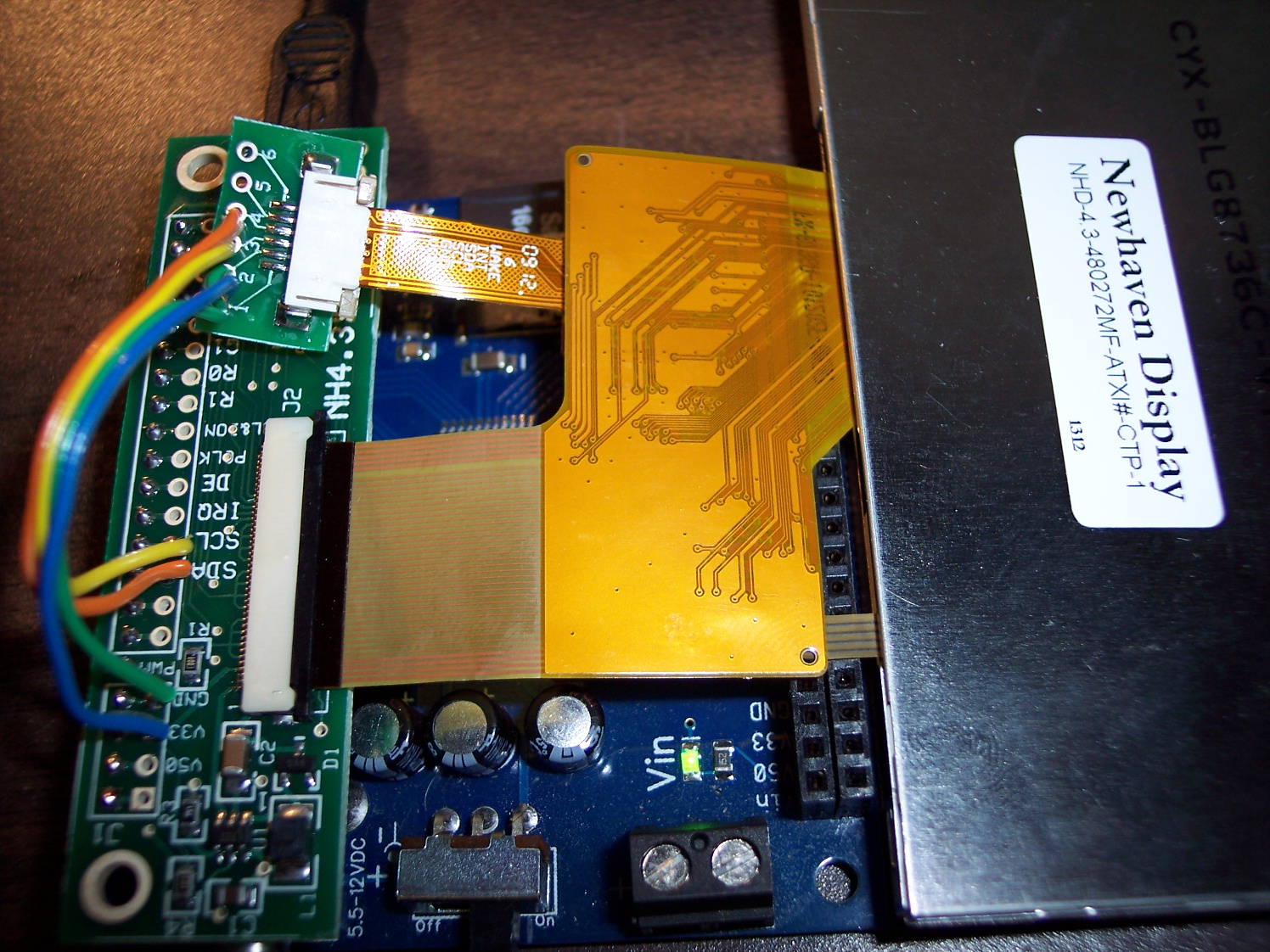

You can now use Newhaven's capacitive touch 4.3" screens with the NH4 by adding a small breakout to the setup and running 4 jumper wires as shown here:

bullet

Breakout boards are only $3 with free USPS shipping.

bullet

bullet

Example Code

bullet

Note:  If not using the upper row of pins on a Propeller Platform board, you will probably need to adjust the pin settings in these files.

bullet

NH4 Paint (click here to download)

bullet

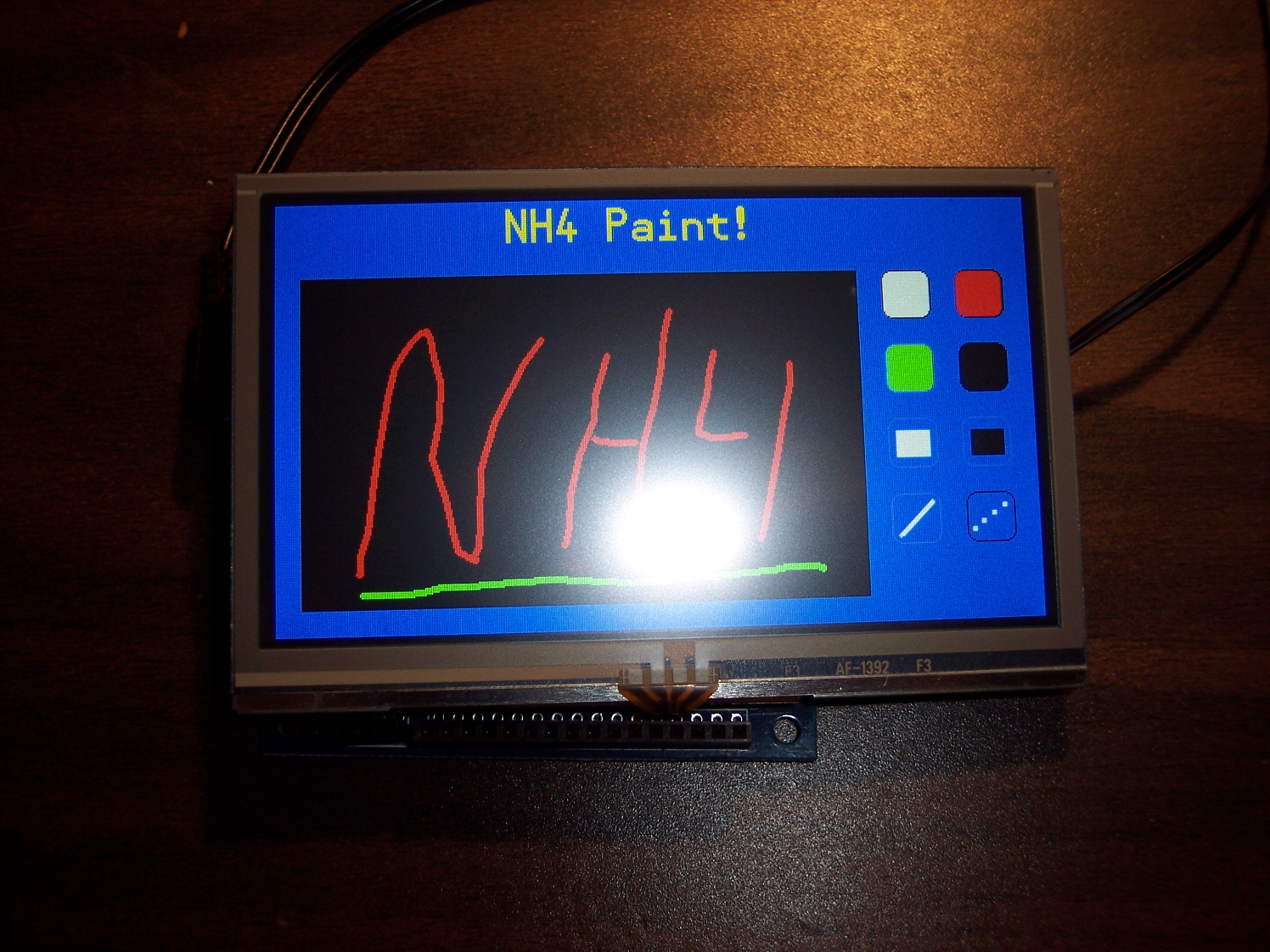

Lets you draw in the screen with stylus or fingertip as shown in a picture above.

bullet

This is a quick adaptation of PSB Paint as NH4 is very similar to the Samsung 4.3" breakouts and boards.

bullet

NH4 Paint for Capacitive Touch Screens

bullet

NH4 Graphics Demo

bullet

This is an adaptation of the Propeller Graphics Demo for TV.

bullet

Schematic

bullet

 Download pdf schematic here.
