Prox1a:  Low-cost Proximity sensor with 3-cm range and digital output

bullet

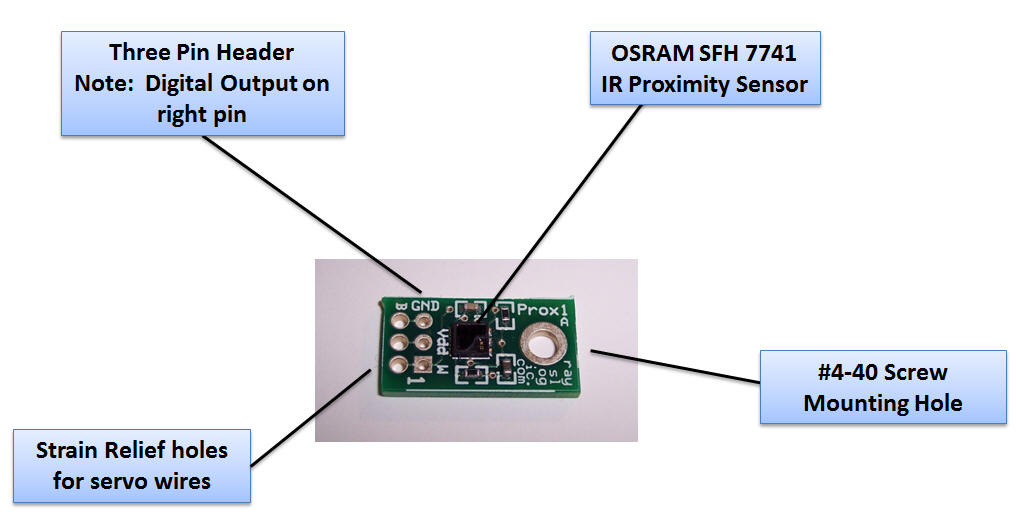

Top View Diagram:

bullet

Specifications:

bullet

Circuit board dimensions are  0.8" by 0.4" by 0.1"

bullet

Recommended Vdd is 2.4 to 3.6 VDC  (So works fine with Propeller's Vdd=3.3 VDC)

bullet

Output is open-drain with a 100k pullup resistor to Vdd.

bullet

Output goes low when object detected

bullet

Only $3.99 with free shipping.

bullet

To order, send email to ray@rayslogic.com with your order

bullet

Example Usage:

bullet

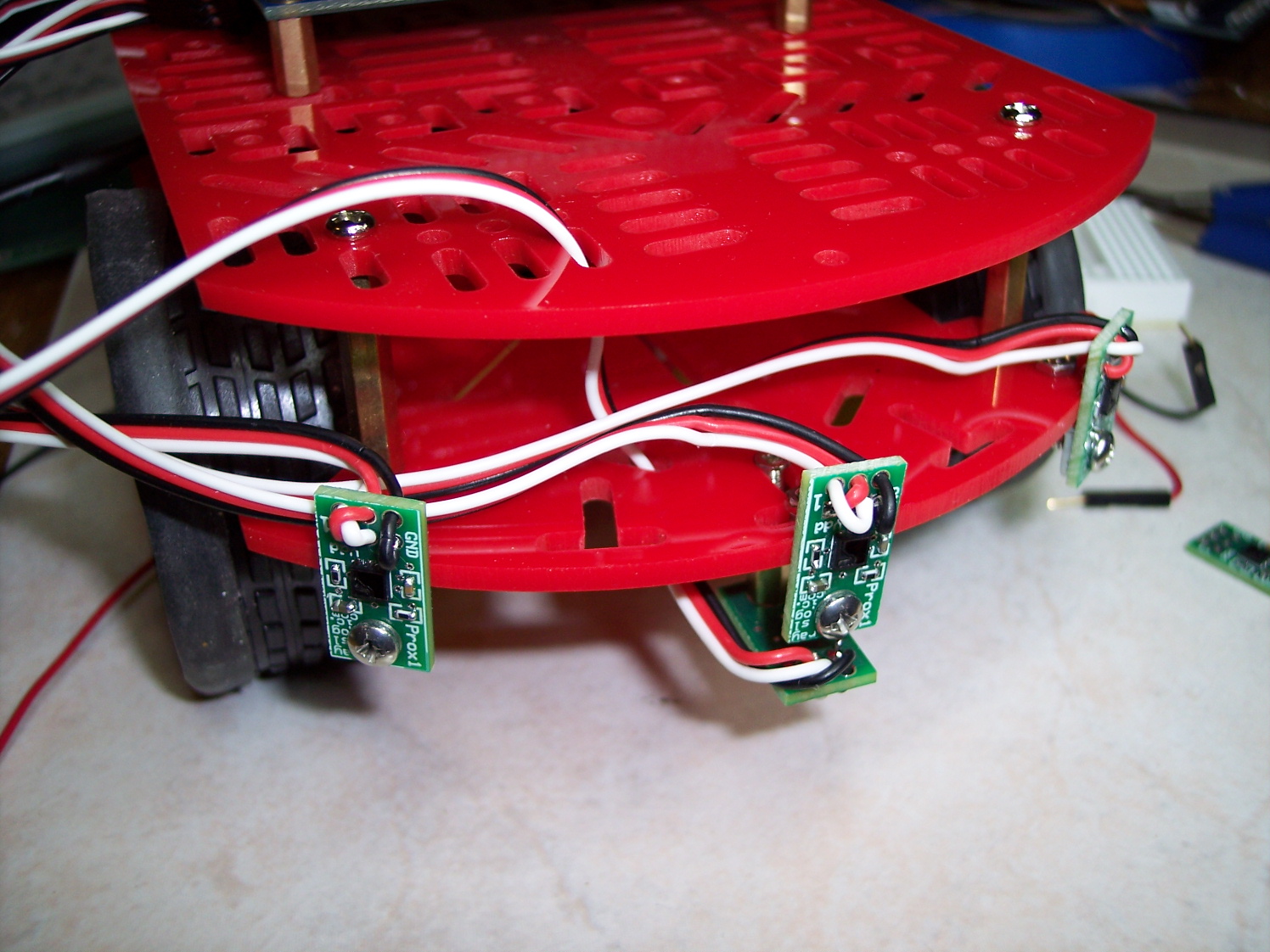

We've used 4 Prox1 sensors on the front of this robot for object detection and floor detection.  Can also be used as line follower.  (Note:  Even though they are made for 3.3 VDC, this robot is using them at 5 VDC without problem).

bullet
bullet

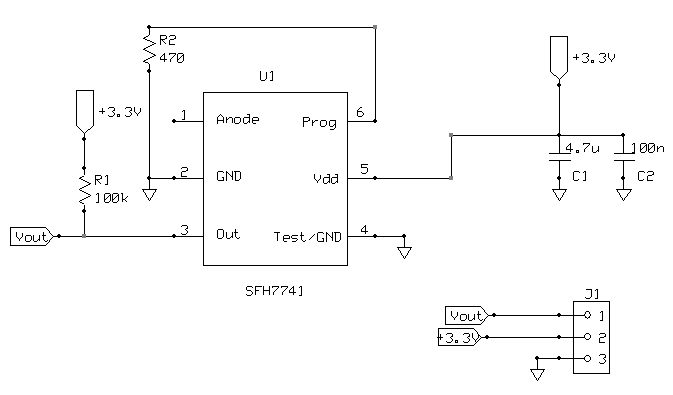

Schematic:
