One very interesting application for the Propeller is 1-bit Sigma-Delta
ADC (analog to digital conversion). This is made possible by the high
clock speed.
![bullet](../../_themes/pixel/apixbul2.gif) |
1-bit Sigma-Delta (ΣΔ) uses two Prop pins,
one for input, one for output. You also need two resistors and two
capacitors (for DC coupled inputs). |
![bullet](../../_themes/pixel/apixbul2.gif) |

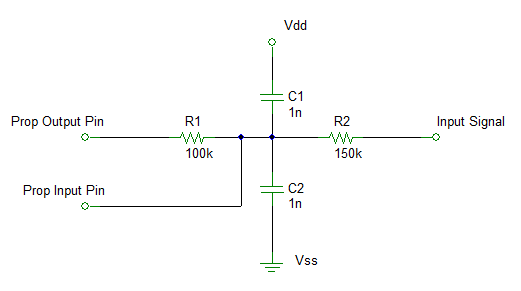

Here's a typical setup:
![](TypicalAdcCircuit.png)
|
|
![bullet](../../_themes/pixel/apixbul1.gif) |
|
![bullet](../../_themes/pixel/apixbul1.gif) |
|
![bullet](../../_themes/pixel/apixbul1.gif) |
This
applet can help pick resistor values. |
![bullet](../../_themes/pixel/apixbul1.gif) |
I've made an object and VGA demo that utilizes both counters of a cog to
do simultaneous ΣΔ ADC of two inputs:
![bullet](../../_themes/pixel/apixbul2.gif) |

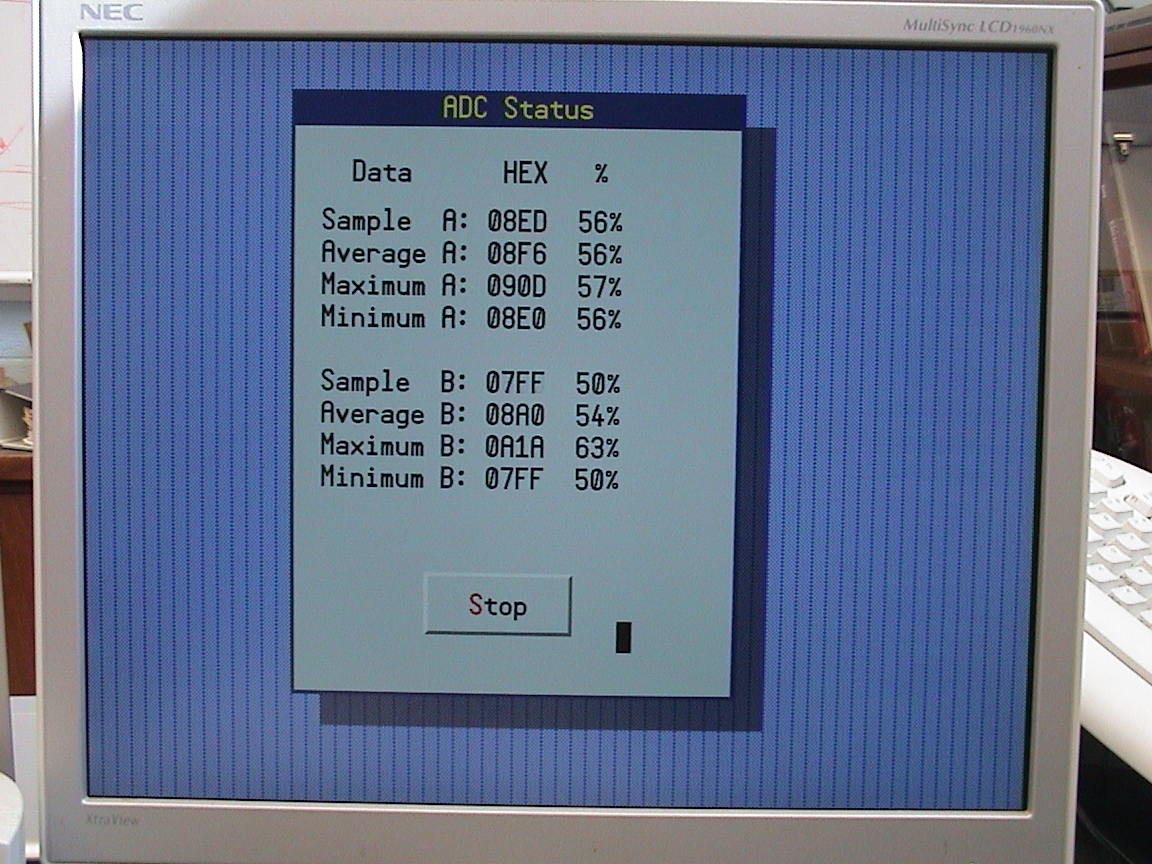

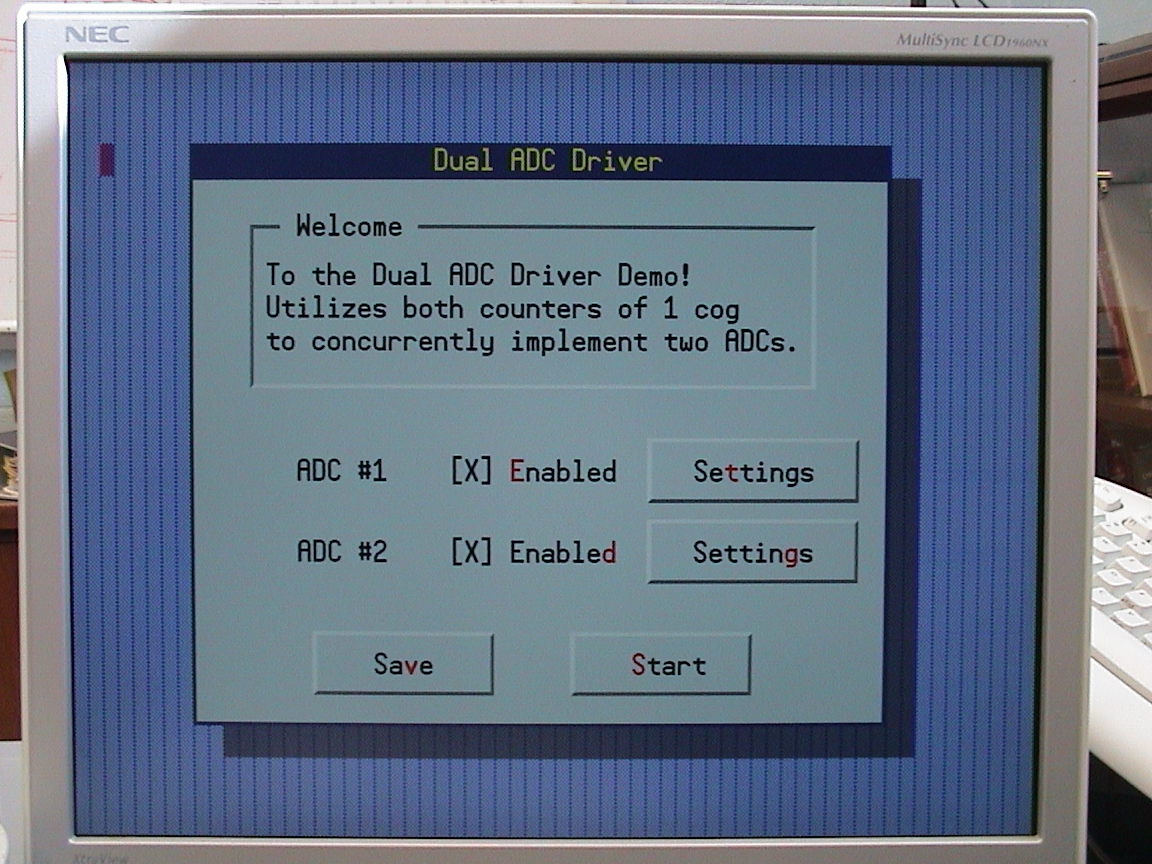

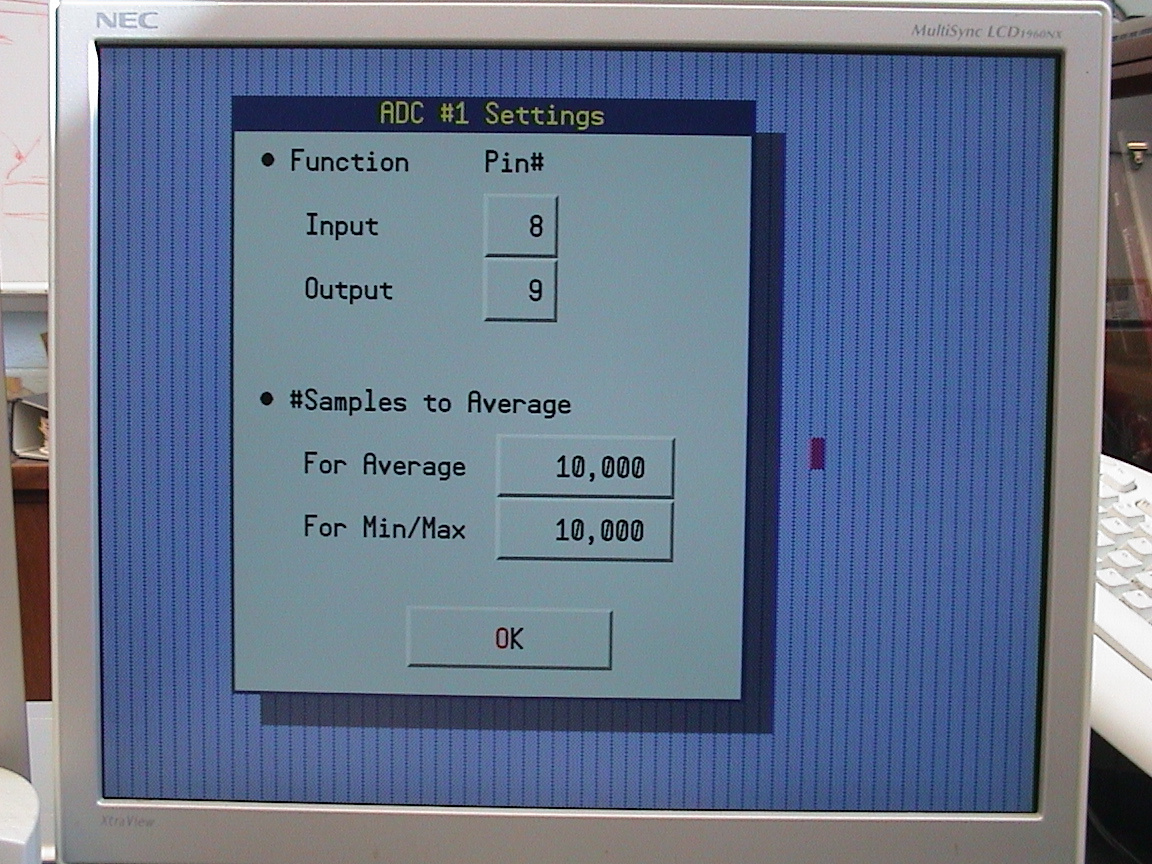

Screenshots:
|
![bullet](../../_themes/pixel/apixbul2.gif) |
Download here. |
|
