PropBox

Home Up

bullet

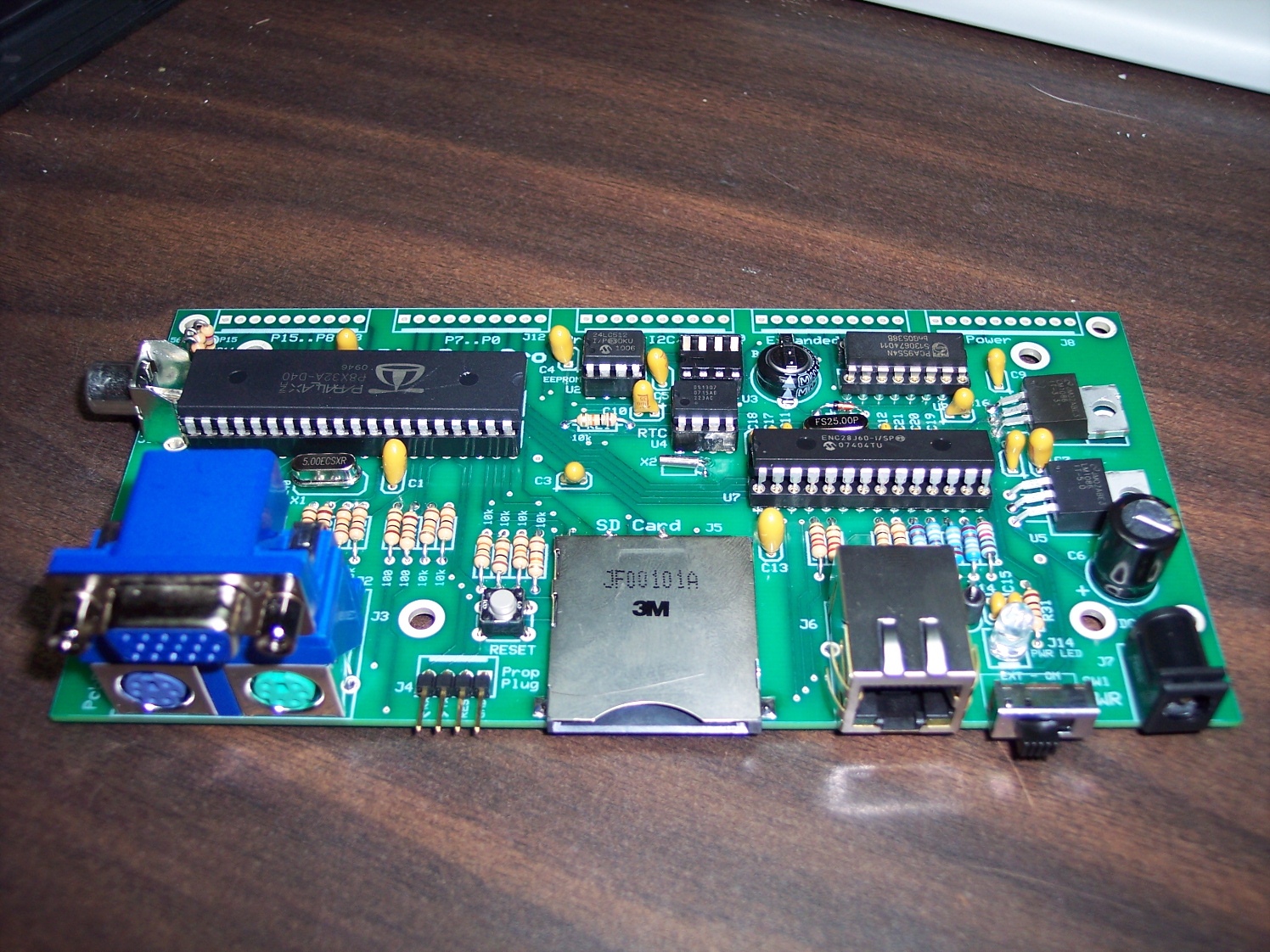

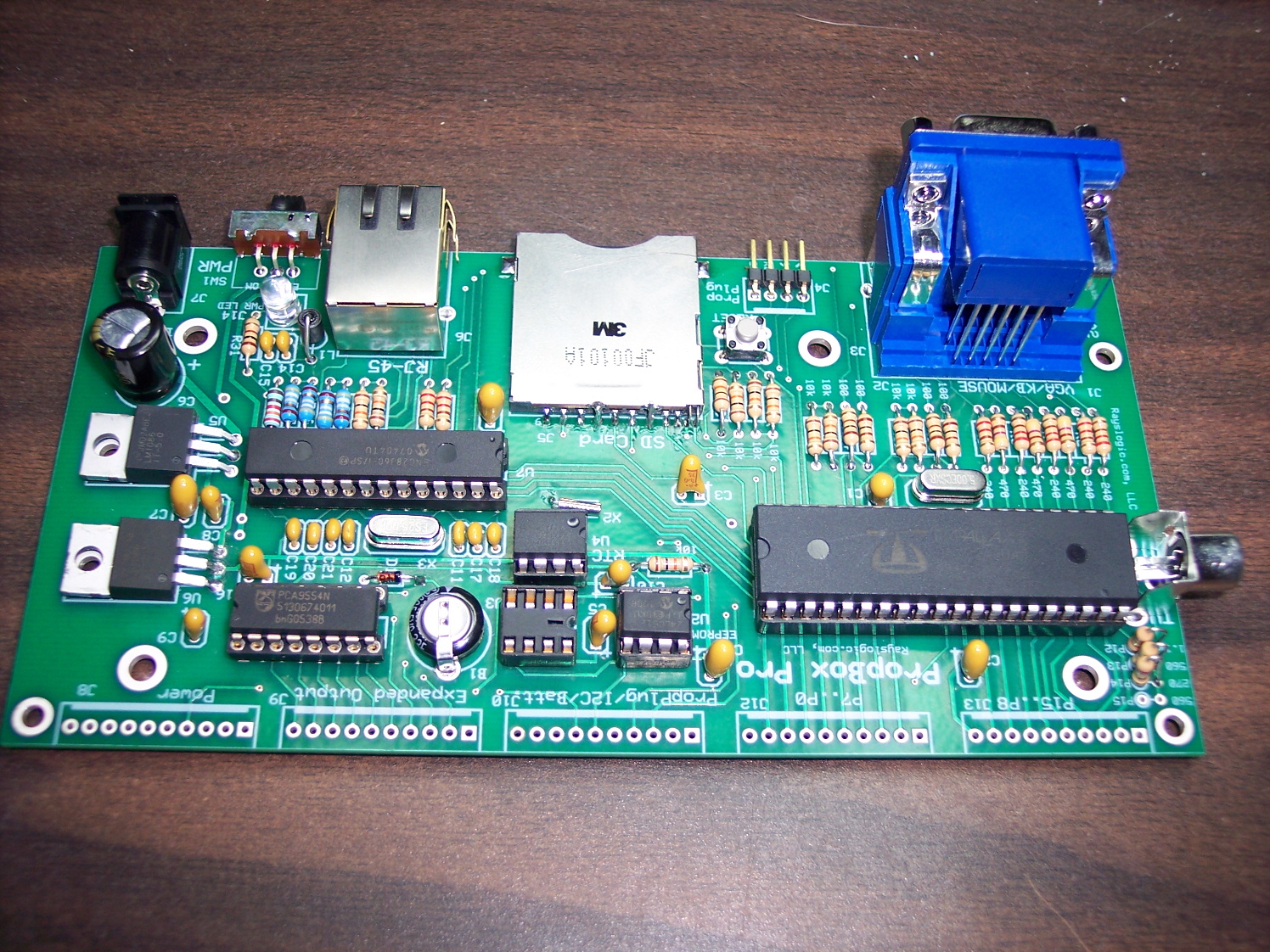

The PropBox is a Propeller PCB designed to fit inside a Hammond extruded metal case with a custom front panel.  But, it also has mounting holes so it can be used in other ways.

bullet

This is an open design project and all the design files are provided here!

bullet
bullet
bullet

Fully Populated PropBox main features include:

bullet

VGA

bullet

Mouse/Keyboard

bullet

SD card (full size)

bullet

Ethernet using ENC28J60

bullet

Expanded I/O using PCA9554N

bullet

Real-time clock with battery backup

bullet

Spare EEPROM socket

bullet

Additionally, a RCA jack and resistor pads for TV output is provided although the board will not slide into the Hammond case if this jack is installed.





bullet

Custom front panels can be purchased from FrontPanelExpress by using their free software and the panel file supplied here.  You can customize colors and other options.

bullet

Download the FrontPanelExpress design file here.

bullet

The PCB was designed using the free software from ExpressPCB and the latest design files are supplied here.

bullet

Download the ExpressPCB design files here.

bullet

Note:  Two grounding errors in the production PCBs are fixed in these latest files.

bullet

Blank PCBs are for sale for $17.  Only the SD card and one capacitor are installed.

bullet

 Just email me to order:  Email Me

bullet

Shipping is $5 for USPS Priority Mail within the US ($10 for Canada/Mexico and $13 for International).

bullet

The SD card is include for two reasons; it's the only part not available from Digikey (it is still available from Mouser) and it allows me to fix an error on the PCB (also why the capacitor is included).
