Propeller Touchscreen Platform   Now Available!

bullet



bullet

Features:

bullet

Propeller Platform Compatible

bullet

Drives the $10 3.5" touchscreens

bullet

Amplified audio out

bullet

Full-size SD card

bullet

Mounting holes for optional 4-cell AAA battery pack (mounts underneath)

bullet

Three varieties available:

bullet

PTP "Full Build" has all components installed (except optional battery holder and expansion eeprom socket).  Just connect a screen and you're ready, Only $65.

bullet

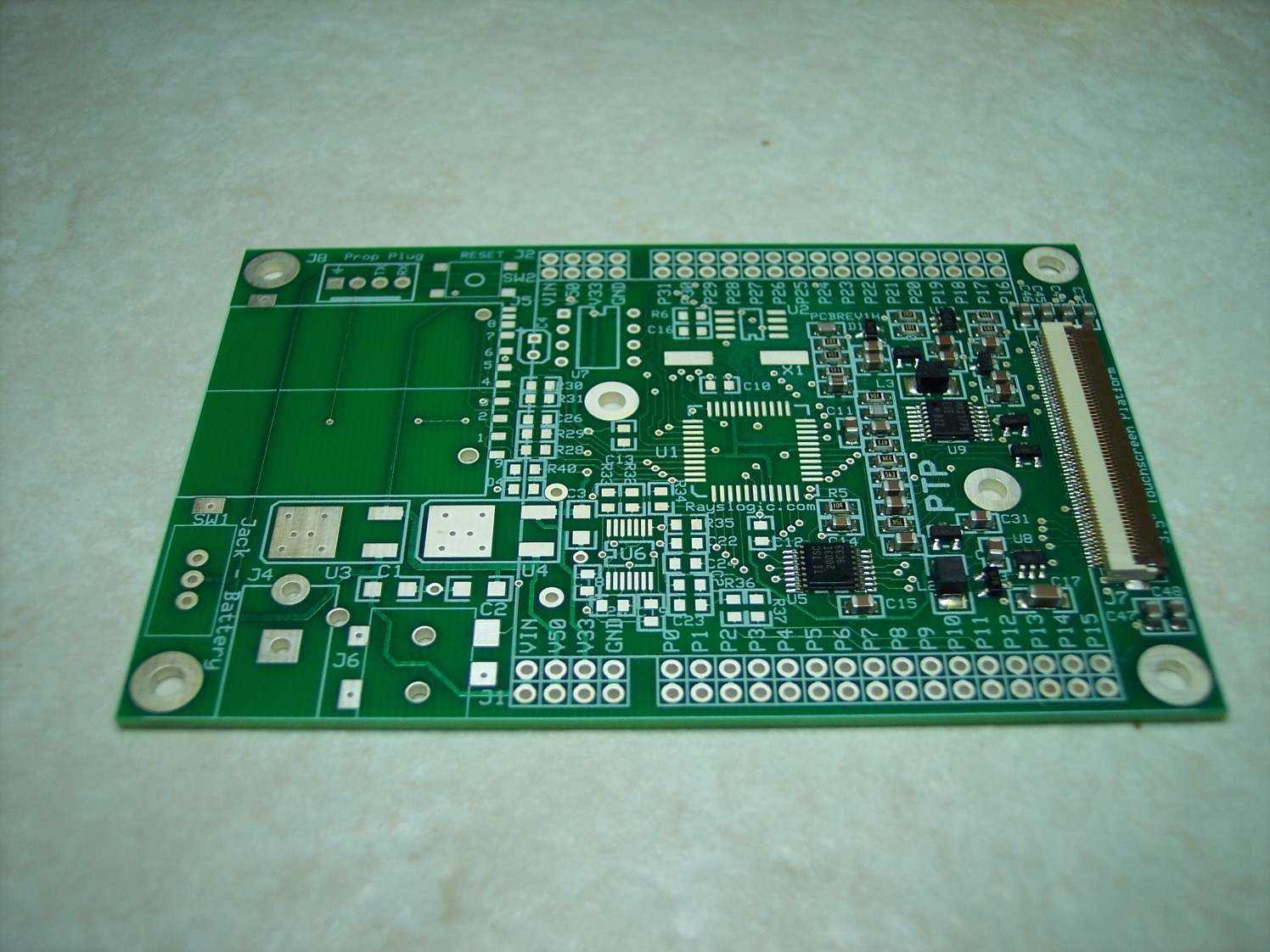

PTP "Shield" has just those components needed to drive the screen.  Mount this shield on your Propeller Platform board and you're ready.

bullet
The PTP Shield is now available at GadgetGangster.com !
bullet

bullet

PTP bare boards are available for $10.

bullet

To order, just  Email Me with what you want.

bullet

Available Accessories:

bullet

4-cell AA battery holders are $2

bullet

spare eeprom sockets are $1    (compatible with 3AD module).

bullet

Schematics

bullet

Example Code:

bullet

Download PTP Graphics Demo: This is the Parallax TV "Graphics Demo" example that has been adapted to the PTP screen.

bullet

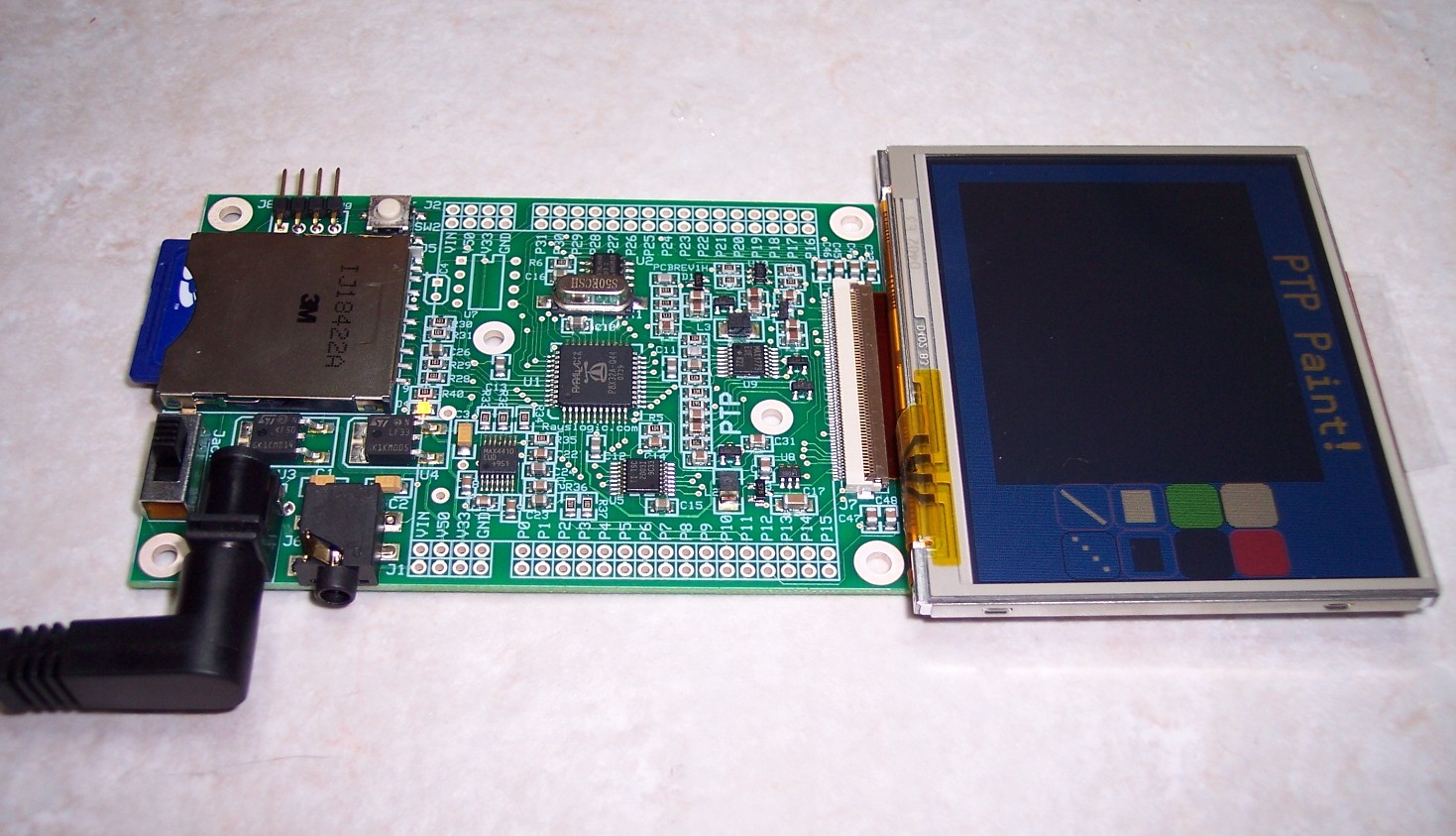

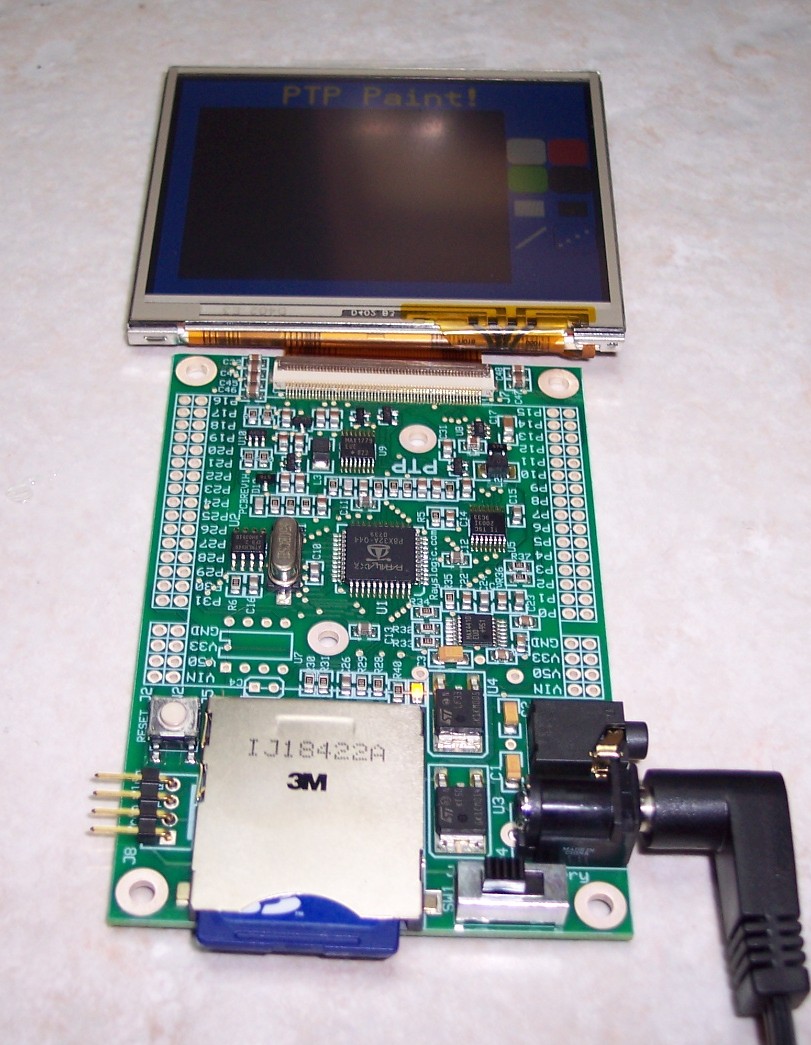

Download PTP Paint!: This is a screen drawing app that demonstrates a touchscreen interface.

bullet

Download PTP Waveplayer:  Plays stereo wav files from SD card to headphones.

bullet

Updated 10Aug10 to FSRW 2.6 for better reliability.

bullet

You can download the example .wav file here

bullet

Note:

bullet

The codes above actually use "DE" mode to drive the display

bullet

In DE mode, the sync signals on P16 and P17 aren't really used

bullet

You can use this driver in this example to recover P16 and P17 for other uses.



bullet

PTP Design Files and Bill of Materials (BOM)

bullet

The PTP was designed using free software from ExpressPCB.

bullet

Download the current PTP design files here

bullet

All components of the PTP are available from Digikey.

bullet

Click here to open the single-file web page version of the BOM.
