Discontinued.

IMPORTANT NOTE:  Use only 4 to 6 VDC Regulated power supplies with the External Power Jack!!  See here for more details.

bullet

Propeller System Module (PSM)

bullet

 Now Available at Gadget Gangster!

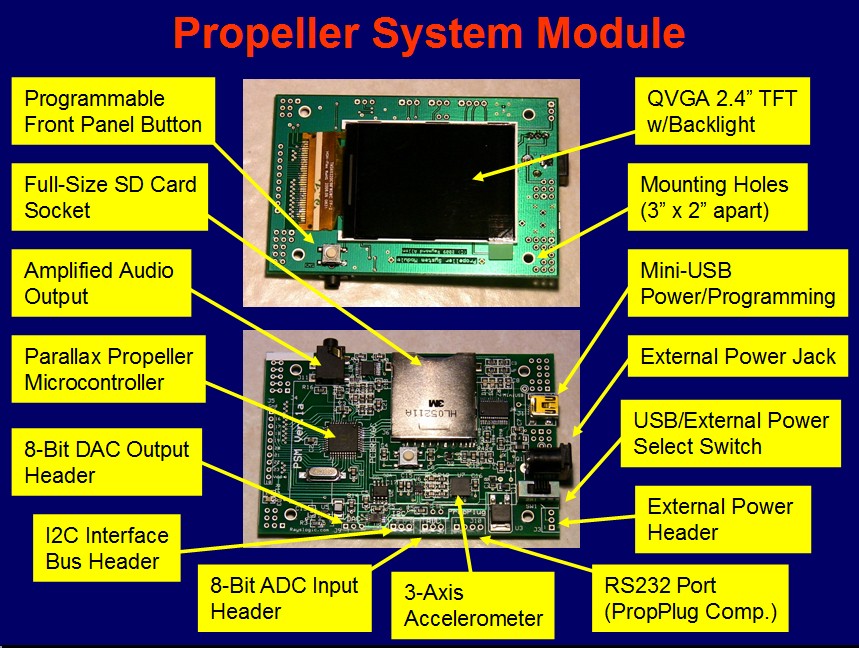

   ← Click for full size
bullet

The PSM User Manual

bullet

PSM Introductory Presentation

bullet

PSM File Downloads

bullet

The PSM is a Propeller based TFT LCD display module.

bullet

Features:

bullet

QVGA 2.4" TFT LCD with 320x240xRGB resolution and backlight

bullet

Propeller Microcontroller running at 80 MHz with 8 independent cores (cogs)

bullet

USB and logic level serial interfaces for control and/or programming

bullet

3-axis accelerometer to detect device orientation

bullet

Stereo headphone output

bullet

Full size SD card memory expansion slot

bullet

One uncommitted pushbutton

bullet

Eight uncommitted I/O pins

bullet

I2C expansion port

bullet

One uncommitted 8-bit ADC input

bullet

One uncommitted 8-bit DAC output

bullet

Electrical:

bullet

Powered by USB, 3-pin header, or standard 5.1 mm barrel connector

bullet

Header ports provided for ADC, DAC, I/O pins, power, and RS232

bullet

Physical:

bullet

Circuit board is 3.8"x2.5"

bullet

The 4 mounting holes provided are spaced 3"x2" apart.

bullet

Modes of Operation:

bullet

The PSM is preprogrammed as a simple RS232 controlled display module with advanced options such as file access to FAT16 formatted SD cards.  But, it can be custom programmed using Parallax's free development tools.  The display will offer several modes of operation:

bullet

Serial command mode accepts commands and data to show text or graphics in any color at any location on the screen.  This is the normal mode of operation when being controlled via the RS232 interface.  Two sizes of fonts are be available.  High-color photos can be displayed in this mode either over the serial interface or from the SD card.

bullet

In Propeller TV/VGA compatibility mode the screen is represented by a 20x15 array of tiles in the same way the Parallax's standard TV/VGA drivers operate.  This allows the developer to use the existing code base with only minor changes.  This also allows double-buffering for fast, full-screen updates.  Also, the standard "Graphics" driver can be utilized in this mode.  Concurrent LCD and TV/VGA display are possible in this mode.

bullet

These two modes can be combined in many ways depending on the particular usage required.  The programming tools are provided by Parallax (only a USB cable is required).  Source code for the modes of operation listed above is provided at no extra cost.

bullet

Expansion:

bullet

The PSM can be expanded using the 8 uncommitted I/O pins, the RS232 interface, and the I2C bus.

bullet

The PSM BCKVM Accessory board (sold separately) attaches to the PSM to form a complete, stand-alone, system.

bullet

Custom accessory boards for the PSM are easily created using the ExpressPCB.com header layout provided.  This allows fast prototyping at low cost.
